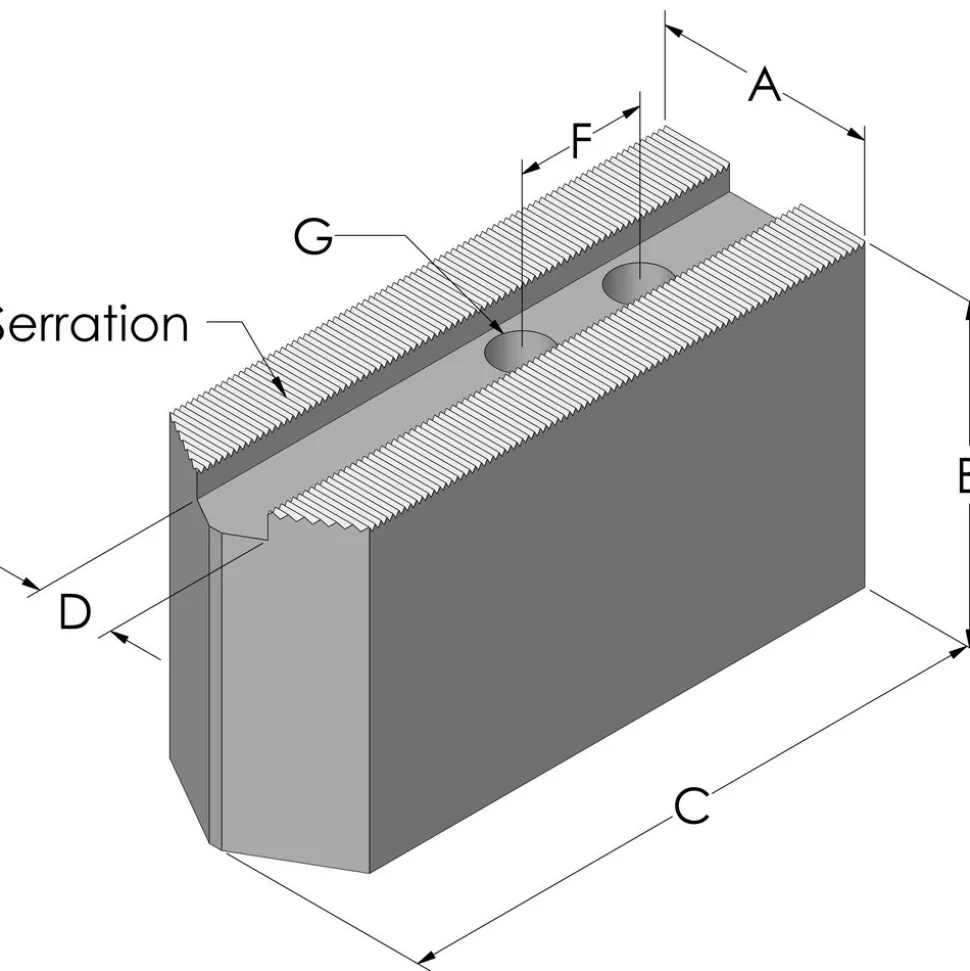

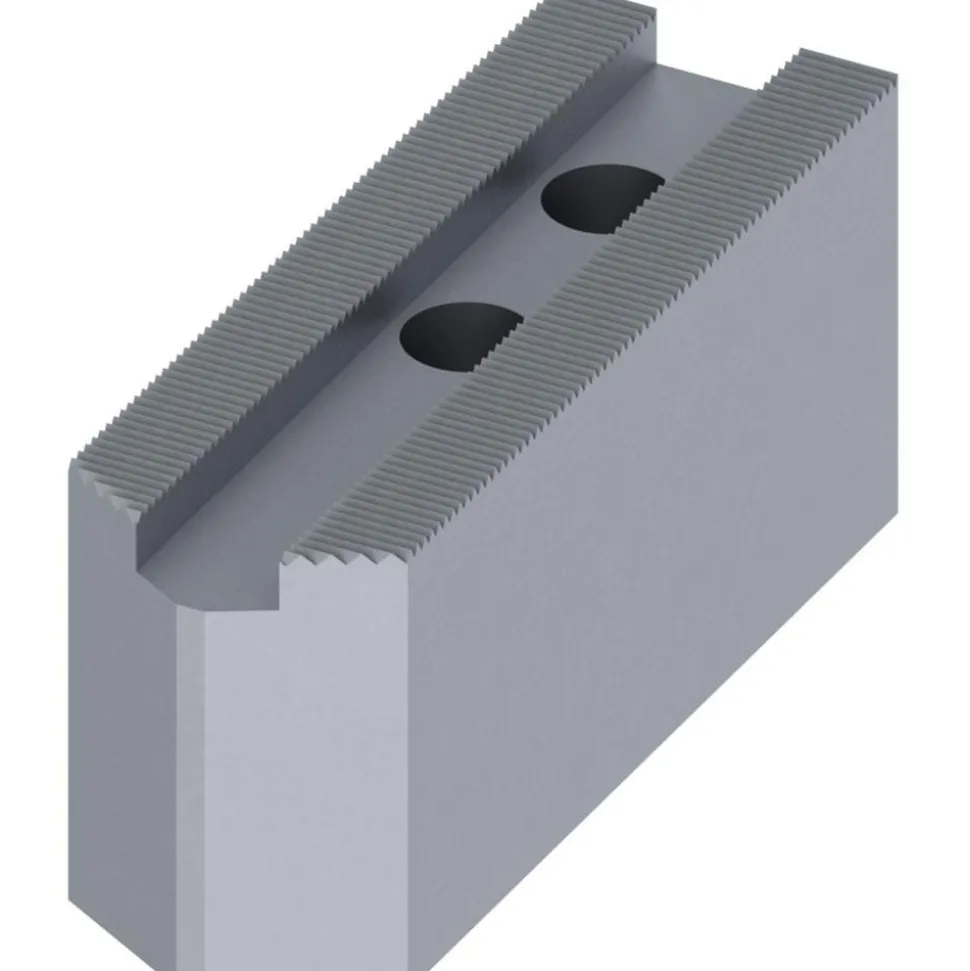

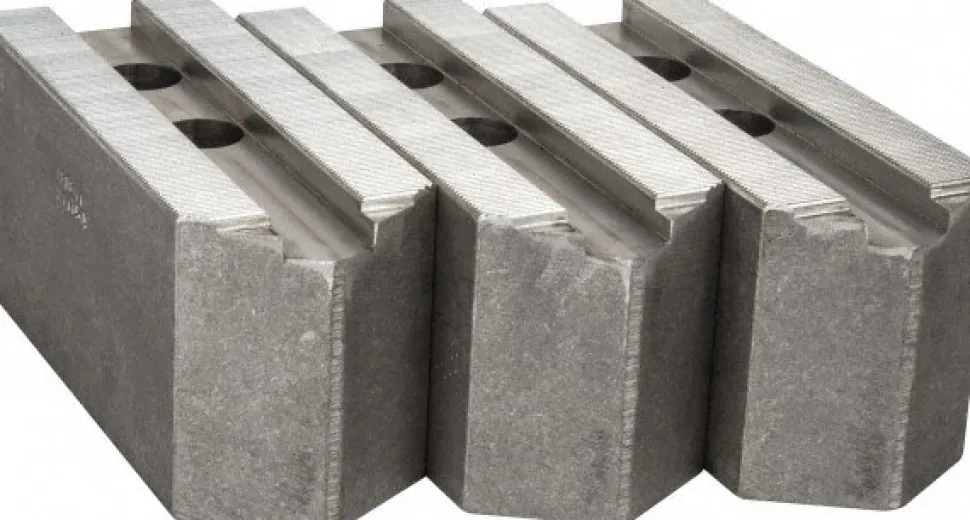

Soft Lathe Chuck Jaw: Serrated
104,89 $
Specifications
| Jaw Shape: Square | Jaw Interface Type: Serrated |
| Material: Aluminum | Maximum Compatible Chuck Diameter (mm): 18.00 |
| Maximum Compatible Chuck Diameter (Decimal Inch): 18.0000 | Minimum Compatible Chuck Diameter (mm): 381.00 |
| Minimum Compatible Chuck Diameter (Decimal Inch): 15.0000 | Distance Between Mount Hole Centers (Decimal Inch): 1.6929 |
| Distance Between Mount Hole Centers (mm): 43.00 | Fastener Size (mm): 20.00 |
| Fastener Size (Decimal Inch): 0.7874 | Slot Width (Decimal Inch): 0.8660 |
| Groove Width (mm): 22.00 | Groove Width (D) (Decimal Inch): 0.8661 |
| Overall Height (Decimal Inch): 3.0000 | Overall Height (mm): 76.20 |
| Overall Length (Inch): 6-1/2 | Overall Length (Decimal Inch): 6.5000 |
| Material Grade: 6061-T6 | Overall Width/Diameter (Inch): 2-1/2 |
| Overall Width/Diameter (Decimal Inch): 2.5000 | Number Of Jaws: 3 |
| UNSPSC Code: 31162902 | Country of Origin: UNITED STATES |
| Jaw Shape: Square | |
| Jaw Interface Type: Serrated | |
| Material: Aluminum | |
| Maximum Compatible Chuck Diameter (mm): 18.00 | |
| Maximum Compatible Chuck Diameter (Decimal Inch): 18.0000 | |
| Minimum Compatible Chuck Diameter (mm): 381.00 | |
| Minimum Compatible Chuck Diameter (Decimal Inch): 15.0000 | |
| Distance Between Mount Hole Centers (Decimal Inch): 1.6929 | |
| Distance Between Mount Hole Centers (mm): 43.00 | |
| Fastener Size (mm): 20.00 | |
| Fastener Size (Decimal Inch): 0.7874 | |
| Slot Width (Decimal Inch): 0.8660 | |
| Groove Width (mm): 22.00 | |
| Groove Width (D) (Decimal Inch): 0.8661 | |
| Overall Height (Decimal Inch): 3.0000 | |
| Overall Height (mm): 76.20 | |
| Overall Length (Inch): 6-1/2 | |
| Overall Length (Decimal Inch): 6.5000 | |
| Material Grade: 6061-T6 | |
| Overall Width/Diameter (Inch): 2-1/2 | |
| Overall Width/Diameter (Decimal Inch): 2.5000 | |
| Number Of Jaws: 3 | |
| UNSPSC Code: 31162902 | |
| Country of Origin: UNITED STATES |
| MSC# | 04230843 |
| Mfr# | KTT15A |
| Big Book# | 1427 |
