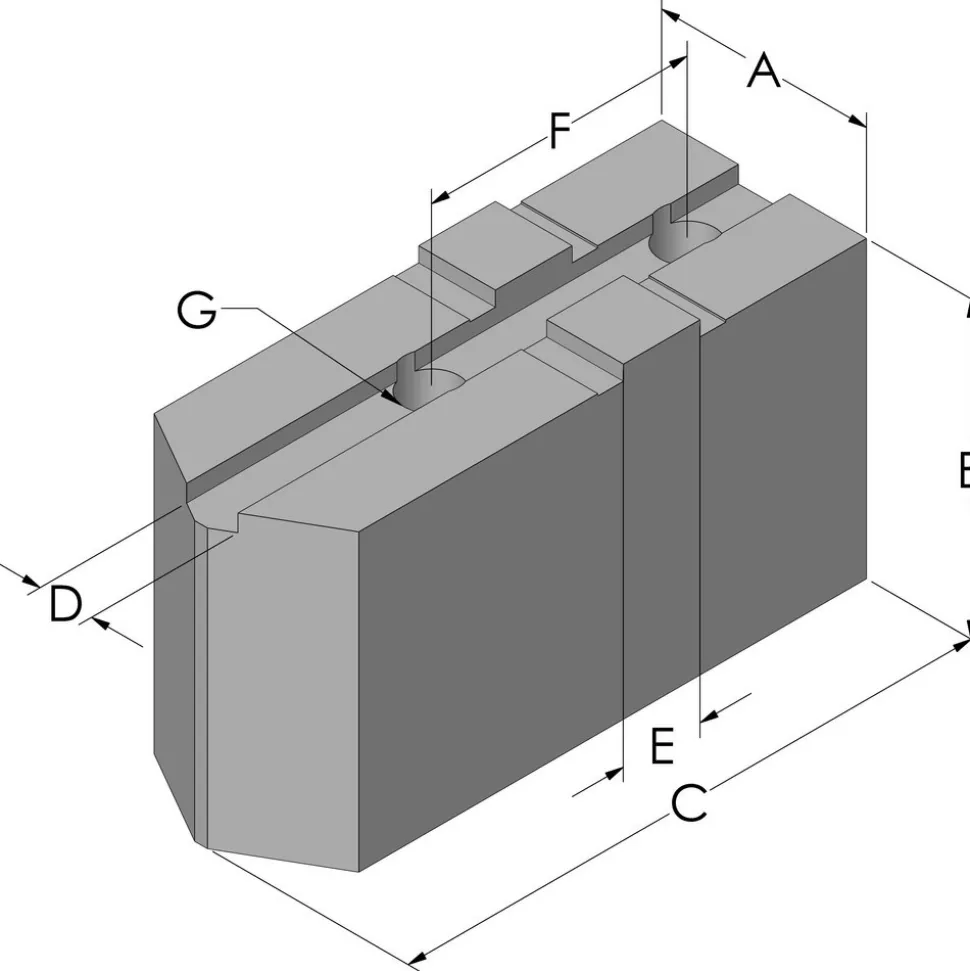

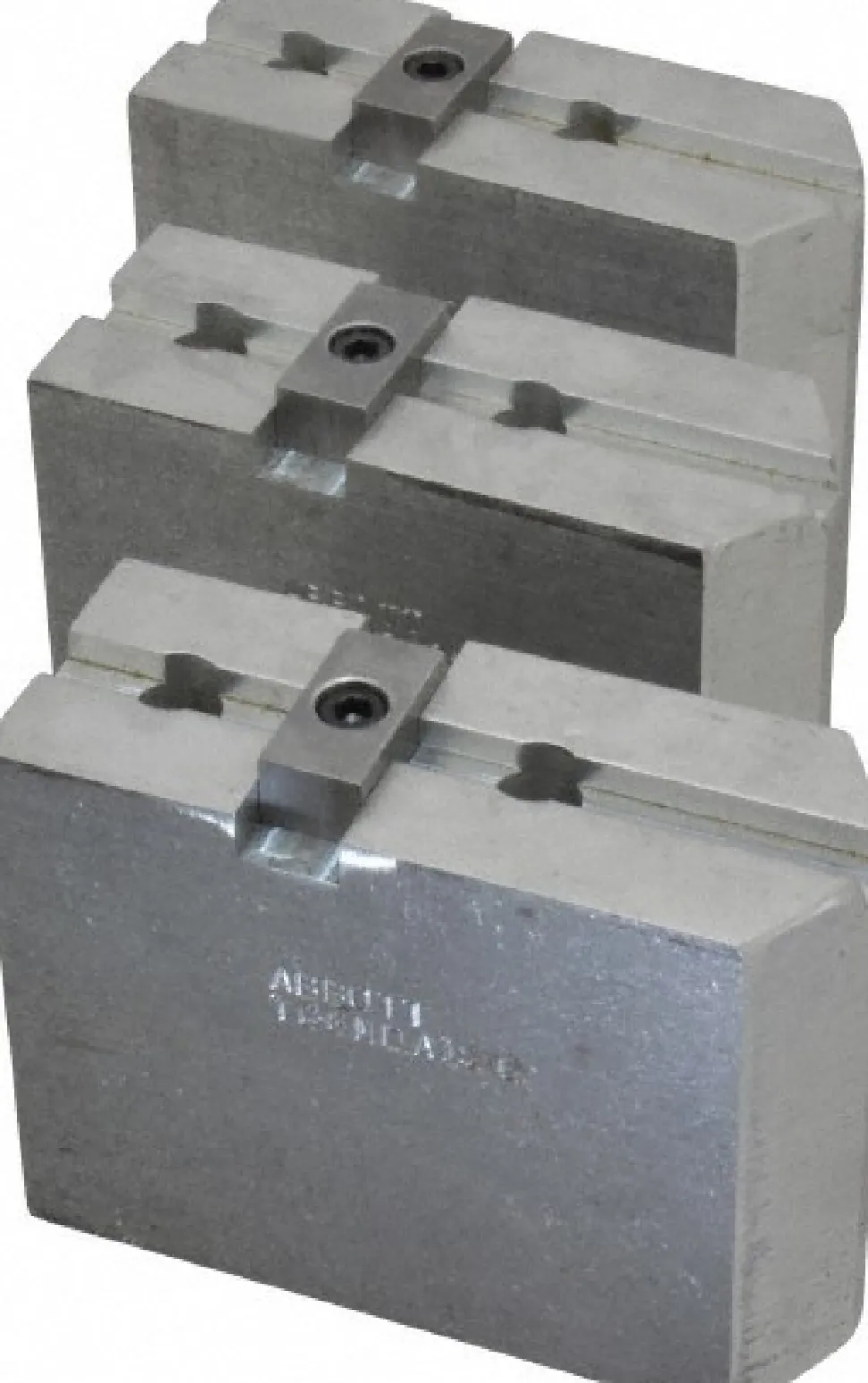

Soft Lathe Chuck Jaw: Tongue & Groove
61,89 $
Specifications
| Jaw Shape: Square | Jaw Interface Type: Tongue & Groove |
| Material: Aluminum | Maximum Compatible Chuck Diameter (mm): 8.00 |
| Maximum Compatible Chuck Diameter (Decimal Inch): 8.0000 | Distance Between Mount Hole Centers (Decimal Inch): 1.7500 |
| Distance Between Mount Hole Centers (mm): 44.45 | Tongue Width (Decimal Inch): 0.5000 |
| Tongue Length (Decimal Inch): 0.5000 | Tongue Width (mm): 12.70 |
| Fastener Size (Decimal Inch): 0.3750 | Slot Width: 7.90 |
| Slot Width (Decimal Inch): 0.3130 | Groove Width (mm): 7.95 |
| Groove Width (D) (Decimal Inch): 0.3130 | Overall Height (Decimal Inch): 3.0000 |
| Overall Height (mm): 76.20 | Overall Length (Inch): 4 |
| Overall Length (Decimal Inch): 4.0000 | Material Grade: 6061-T6 |
| Overall Width/Diameter (Inch): 1-1/2 | Overall Width/Diameter (Decimal Inch): 1.5000 |
| Number Of Jaws: 3 | UNSPSC Code: 31162902 |
| Country of Origin: UNITED STATES | |
| Jaw Shape: Square | |
| Jaw Interface Type: Tongue & Groove | |
| Material: Aluminum | |
| Maximum Compatible Chuck Diameter (mm): 8.00 | |
| Maximum Compatible Chuck Diameter (Decimal Inch): 8.0000 | |
| Distance Between Mount Hole Centers (Decimal Inch): 1.7500 | |
| Distance Between Mount Hole Centers (mm): 44.45 | |
| Tongue Width (Decimal Inch): 0.5000 | |
| Tongue Length (Decimal Inch): 0.5000 | |
| Tongue Width (mm): 12.70 | |
| Fastener Size (Decimal Inch): 0.3750 | |
| Slot Width: 7.90 | |
| Slot Width (Decimal Inch): 0.3130 | |
| Groove Width (mm): 7.95 | |
| Groove Width (D) (Decimal Inch): 0.3130 | |
| Overall Height (Decimal Inch): 3.0000 | |
| Overall Height (mm): 76.20 | |
| Overall Length (Inch): 4 | |
| Overall Length (Decimal Inch): 4.0000 | |
| Material Grade: 6061-T6 | |
| Overall Width/Diameter (Inch): 1-1/2 | |
| Overall Width/Diameter (Decimal Inch): 1.5000 | |
| Number Of Jaws: 3 | |
| UNSPSC Code: 31162902 | |
| Country of Origin: UNITED STATES |
| MSC# | 04226502 |
| Mfr# | TG8MDA1 |
| Big Book# | 1425 |
