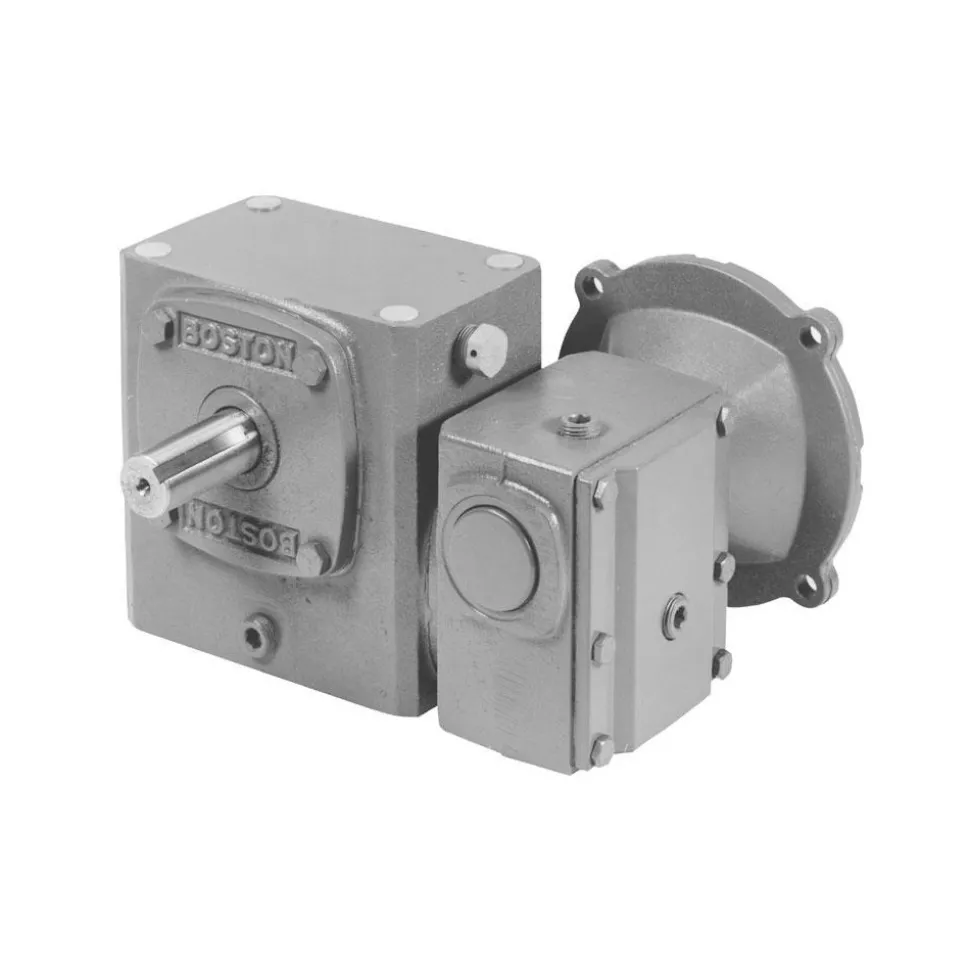

Speed Reducer: Quill, 2.06″ Center to Center Shaft, 40:1, 0.81 hp Max Input, Worm Gear
128,99 $
Specifications
| Centerline Distance: 2.060 | Reducer Type: Quill |
| Shaft Type: Single | Ratio: 40:1 |
| Shaft Orientation: Right Angle | Center-to-center Shaft Distance: 2.0600 in |
| Speed Ratio: 40:1 | Maximum Input Horsepower: 0.81 |
| Maximum Output Speed: 44.0 | Nema/Iec Frame Size: 56C NEMA |
| Maximum Torque (In/Lb.): 876.00 | Bore Diameter (Decimal Inch): 1.0000 |
| Shaft Diameter (Decimal Inch): 1.0000 | Gear Type: Worm |
| Housing Material: Cast Iron | Overall Length (Decimal Inch): 7.2500 |
| Overall Width (Decimal Inch – 4 Decimals): 5.8125 | Overall Height (Decimal Inch): 4.8750 |
| Standards: ISO 9001:2015 | Base Type: PROJ |
| Output RPM at 1750 Input: 44.0 | Torque Output (In/Lb) with 1/2 Horsepower Motor @ 1750: 541 |
| Torque Output (In/Lb) with 1/3 Horsepower Motor @ 1750: 360 | Torque Output (In/Lb) with 3/4 Horsepower Motor @ 1750: 811 |
| UNSPSC Code: 26111500 | Country of Origin: UNITED STATES |
| Centerline Distance: 2.060 | |
| Reducer Type: Quill | |
| Shaft Type: Single | |
| Ratio: 40:1 | |
| Shaft Orientation: Right Angle | |
| Center-to-center Shaft Distance: 2.0600 in | |
| Speed Ratio: 40:1 | |
| Maximum Input Horsepower: 0.81 | |
| Maximum Output Speed: 44.0 | |
| Nema/Iec Frame Size: 56C NEMA | |
| Maximum Torque (In/Lb.): 876.00 | |
| Bore Diameter (Decimal Inch): 1.0000 | |
| Shaft Diameter (Decimal Inch): 1.0000 | |
| Gear Type: Worm | |
| Housing Material: Cast Iron | |
| Overall Length (Decimal Inch): 7.2500 | |
| Overall Width (Decimal Inch – 4 Decimals): 5.8125 | |
| Overall Height (Decimal Inch): 4.8750 | |
| Standards: ISO 9001:2015 | |
| Base Type: PROJ | |
| Output RPM at 1750 Input: 44.0 | |
| Torque Output (In/Lb) with 1/2 Horsepower Motor @ 1750: 541 | |
| Torque Output (In/Lb) with 1/3 Horsepower Motor @ 1750: 360 | |
| Torque Output (In/Lb) with 3/4 Horsepower Motor @ 1750: 811 | |
| UNSPSC Code: 26111500 | |
| Country of Origin: UNITED STATES |
| MSC# | 06382790 |
| Mfr# | 51972 |
| Big Book# | 3712 |
