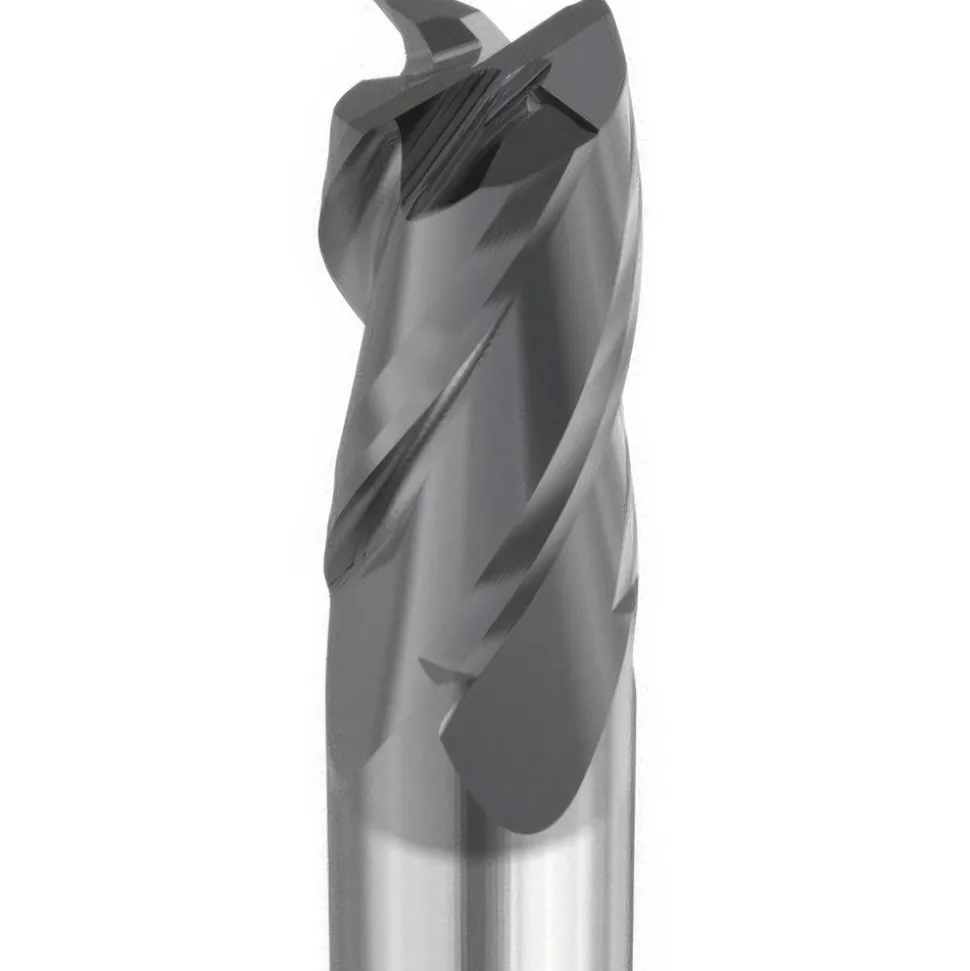

Square End Mill: 1/2″ Dia, 1″ LOC
56,89 $
Specifications
| Mill Diameter (Decimal Inch): 0.5000 | Mill Diameter (Inch): 1/2 |
| Number Of Flutes: 4 | End Mill Material: Solid Carbide |
| Length of Cut (Decimal Inch): 1.0000 | Length of Cut (Inch): 1 |
| Shank Diameter (Decimal Inch): 0.5000 | Shank Diameter (Inch): 1/2 |
| Overall Length (Decimal Inch): 3.0000 | Overall Length (Inch): 3 |
| Single Or Double End: Single | Coating/Finish Family: SIRON-A |
| Centercutting: Yes | Cutting Direction: Right Hand |
| Flute Direction: Right Hand | Extended Reach: No |
| Coolant Through: No | Helix Angle: 30 |
| Primary Workpiece Material: High-Temp Alloy; Stainless Steel; Cast Iron; Steel | Primary Workpiece Material Code: P; S; K; M |
| Coating/Finish: SIRON-A | Variable Helix: No |
| Variable Index: No | Chipbreaker: No |
| Flute Type: Helical | Shank Type: Straight-Cylindrical |
| Material Grade: Micrograin | Length Type: Short |
| Reach Length (Inch): 1 | Reach Length (Decimal Inch): 1.0000 |
| Length Of Cut Range (Decimal Inch): 1.0000 to 1.5000 | Mill Diameter Tolerance: -0.0020/0.0000 in |
| Shank Diameter Tolerance: ANSI B94.19 | Overall Length Tolerance: NAS 986 |
| TIR Maximum (Decimal Inch): 0.0005 | Series: C5141 |
| System Of Measurement: Fractional Inch | UNSPSC Code: 27112803 |
| Product Name: C-Series | Country of Origin: UNITED STATES |
| Mill Diameter (Decimal Inch): 0.5000 | |
| Mill Diameter (Inch): 1/2 | |
| Number Of Flutes: 4 | |
| End Mill Material: Solid Carbide | |
| Length of Cut (Decimal Inch): 1.0000 | |
| Length of Cut (Inch): 1 | |
| Shank Diameter (Decimal Inch): 0.5000 | |
| Shank Diameter (Inch): 1/2 | |
| Overall Length (Decimal Inch): 3.0000 | |
| Overall Length (Inch): 3 | |
| Single Or Double End: Single | |
| Coating/Finish Family: SIRON-A | |
| Centercutting: Yes | |
| Cutting Direction: Right Hand | |
| Flute Direction: Right Hand | |
| Extended Reach: No | |
| Coolant Through: No | |
| Helix Angle: 30 | |
| Primary Workpiece Material: High-Temp Alloy; Stainless Steel; Cast Iron; Steel | |
| Primary Workpiece Material Code: P; S; K; M | |
| Coating/Finish: SIRON-A | |
| Variable Helix: No | |
| Variable Index: No | |
| Chipbreaker: No | |
| Flute Type: Helical | |
| Shank Type: Straight-Cylindrical | |
| Material Grade: Micrograin | |
| Length Type: Short | |
| Reach Length (Inch): 1 | |
| Reach Length (Decimal Inch): 1.0000 | |
| Length Of Cut Range (Decimal Inch): 1.0000 to 1.5000 | |
| Mill Diameter Tolerance: -0.0020/0.0000 in | |
| Shank Diameter Tolerance: ANSI B94.19 | |
| Overall Length Tolerance: NAS 986 | |
| TIR Maximum (Decimal Inch): 0.0005 | |
| Series: C5141 | |
| System Of Measurement: Fractional Inch | |
| UNSPSC Code: 27112803 | |
| Product Name: C-Series | |
| Country of Origin: UNITED STATES |
| MSC# | 53262101 |
| Mfr# | 10268333 |
