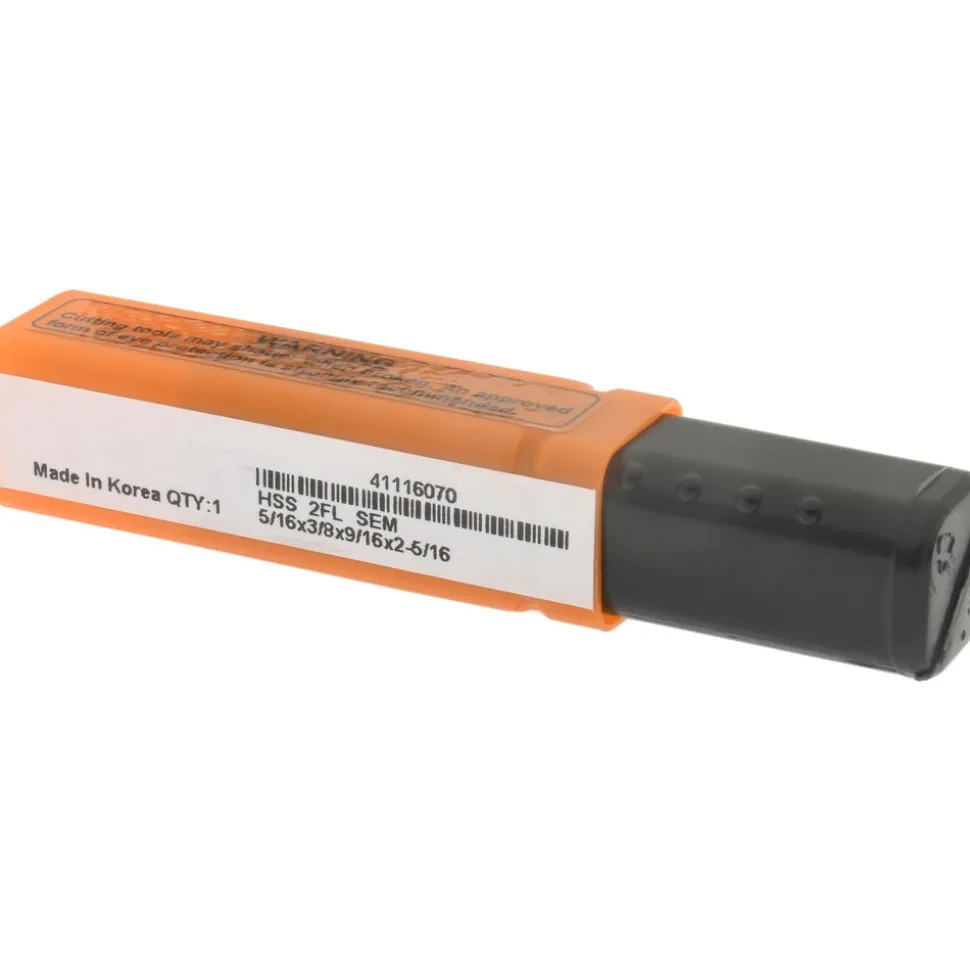

Square End Mill: 5/16″ Dia, 9/16″ LOC
11,99 $
Specifications
| Mill Diameter (Decimal Inch): 0.3125 | Mill Diameter (Inch): 5/16 |
| Number Of Flutes: 2 | End Mill Material: High Speed Steel |
| Length of Cut (Decimal Inch): 0.5625 | Length of Cut (Inch): 9/16 |
| Shank Diameter (Decimal Inch): 0.3750 | Shank Diameter (Inch): 3/8 |
| Overall Length (Decimal Inch): 2.3125 | Overall Length (Inch): 2-5/16 |
| Single Or Double End: Single | Coating/Finish Family: Bright/Uncoated |
| Centercutting: Yes | Cutting Direction: Right Hand |
| Flute Direction: Right Hand | Extended Reach: No |
| Coolant Through: No | Helix Angle: 30 |
| Coating/Finish: Bright/Uncoated | Variable Helix: No |
| Variable Index: No | Chipbreaker: No |
| Flute Type: Spiral | Material Grade: M7 |
| Length Of Cut Range (Decimal Inch): 0.5000 – 0.6000 | Series: HSQH2-CC |
| System Of Measurement: Fractional Inch | UNSPSC Code: 27112803 |
| Country of Origin: South Korea | |
| Mill Diameter (Decimal Inch): 0.3125 | |
| Mill Diameter (Inch): 5/16 | |
| Number Of Flutes: 2 | |
| End Mill Material: High Speed Steel | |
| Length of Cut (Decimal Inch): 0.5625 | |
| Length of Cut (Inch): 9/16 | |
| Shank Diameter (Decimal Inch): 0.3750 | |
| Shank Diameter (Inch): 3/8 | |
| Overall Length (Decimal Inch): 2.3125 | |
| Overall Length (Inch): 2-5/16 | |
| Single Or Double End: Single | |
| Coating/Finish Family: Bright/Uncoated | |
| Centercutting: Yes | |
| Cutting Direction: Right Hand | |
| Flute Direction: Right Hand | |
| Extended Reach: No | |
| Coolant Through: No | |
| Helix Angle: 30 | |
| Coating/Finish: Bright/Uncoated | |
| Variable Helix: No | |
| Variable Index: No | |
| Chipbreaker: No | |
| Flute Type: Spiral | |
| Material Grade: M7 | |
| Length Of Cut Range (Decimal Inch): 0.5000 – 0.6000 | |
| Series: HSQH2-CC | |
| System Of Measurement: Fractional Inch | |
| UNSPSC Code: 27112803 | |
| Country of Origin: South Korea |
| MSC# | 41116070 |
| Mfr# | E1030020 |
| Big Book# | 577 |
