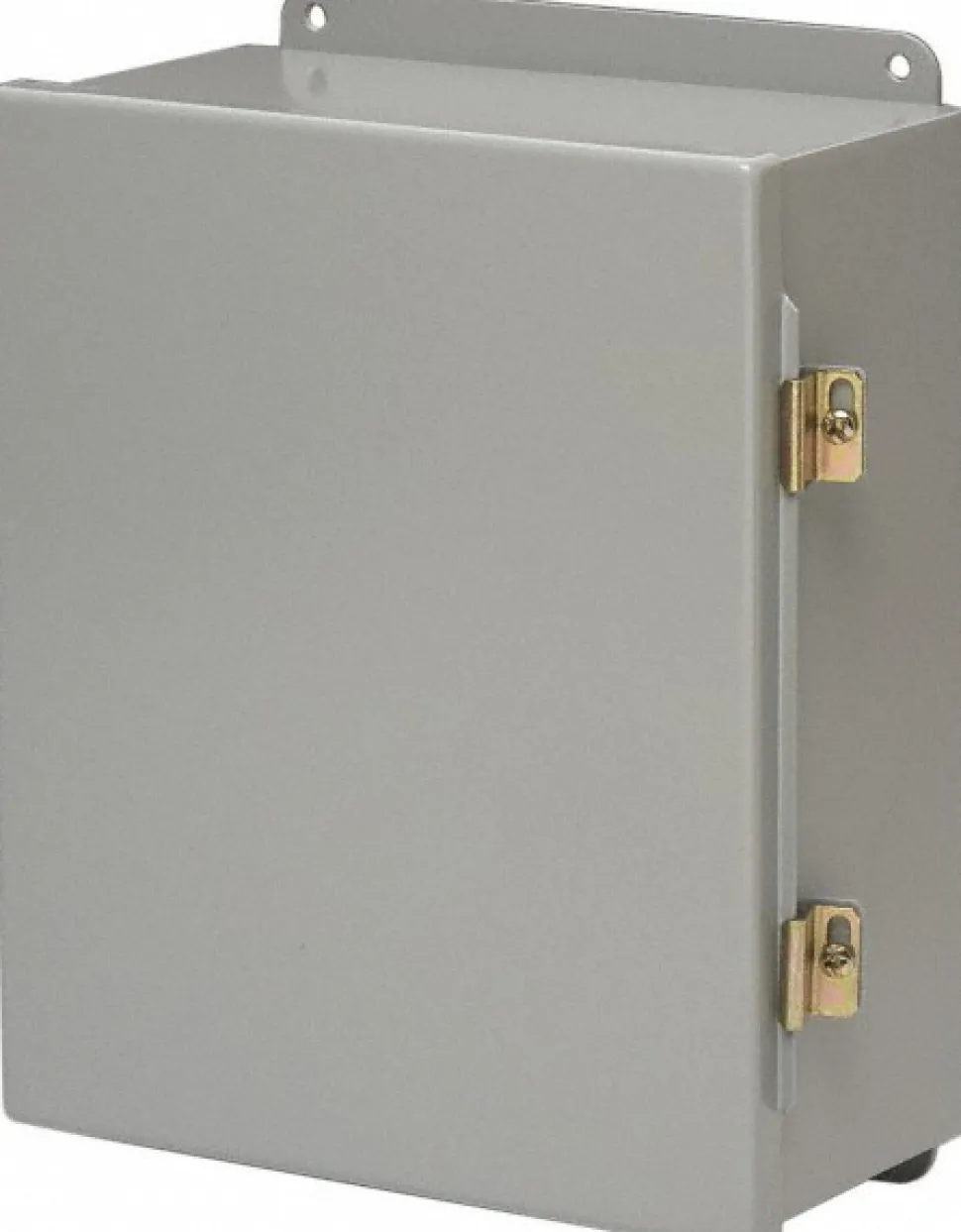

Standard Electrical Enclosure: Steel, NEMA 12 & 13

138,99 $

Specifications

Enclosure Type: Standard	Enclosure Material: Steel
Cover Color: Gray	Finish: Polyester Powder Coated
Cover Type: Hinge Flat	Overall Height (Decimal Inch): 8.0000
Overall Height (mm): 203.00	Overall Height (Inch): 8
Overall Depth (Inch): 6	Overall Depth (Decimal Inch): 6.0000
Overall Depth (Mm): 152.00	Overall Width (Decimal Inch – 4 Decimals): 8.0000
Overall Width (Inch): 8	Overall Width (mm): 203.00
Material Gauge: 16	Resistance Features: Dust-Tight; Dirt-Tight
Includes: Seamless Poured-in-place Gasket; External Mounting Feet; #10-32 Weldnuts; Ground Stud	Standards: UL Listed 508; CSA C22.2 No. 94 Certified; ANSI 61
Nema Rating: 12; 13	UNSPSC Code: 39121300
Country of Origin: UNITED STATES
Enclosure Type: Standard
Enclosure Material: Steel
Cover Color: Gray
Finish: Polyester Powder Coated
Cover Type: Hinge Flat
Overall Height (Decimal Inch): 8.0000
Overall Height (mm): 203.00
Overall Height (Inch): 8
Overall Depth (Inch): 6
Overall Depth (Decimal Inch): 6.0000
Overall Depth (Mm): 152.00
Overall Width (Decimal Inch – 4 Decimals): 8.0000
Overall Width (Inch): 8
Overall Width (mm): 203.00
Material Gauge: 16
Resistance Features: Dust-Tight; Dirt-Tight
Includes: Seamless Poured-in-place Gasket; External Mounting Feet; #10-32 Weldnuts; Ground Stud
Standards: UL Listed 508; CSA C22.2 No. 94 Certified; ANSI 61
Nema Rating: 12; 13
UNSPSC Code: 39121300
Country of Origin: UNITED STATES
