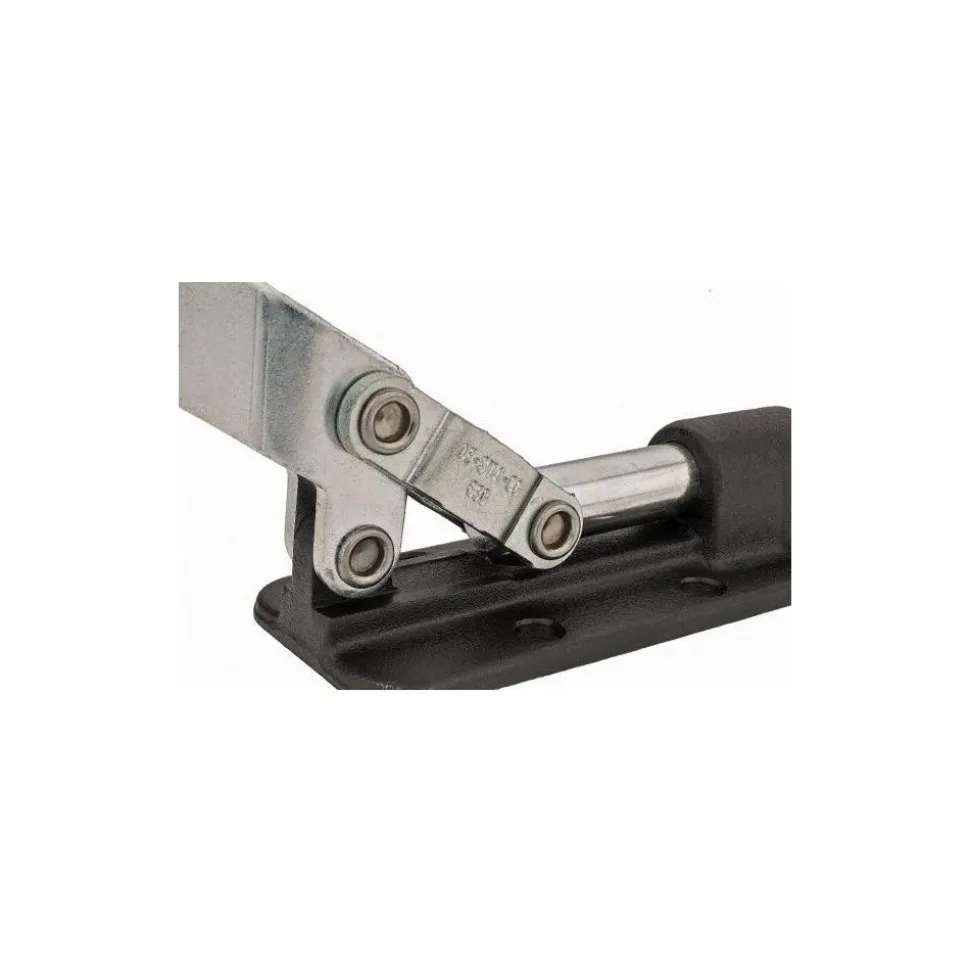

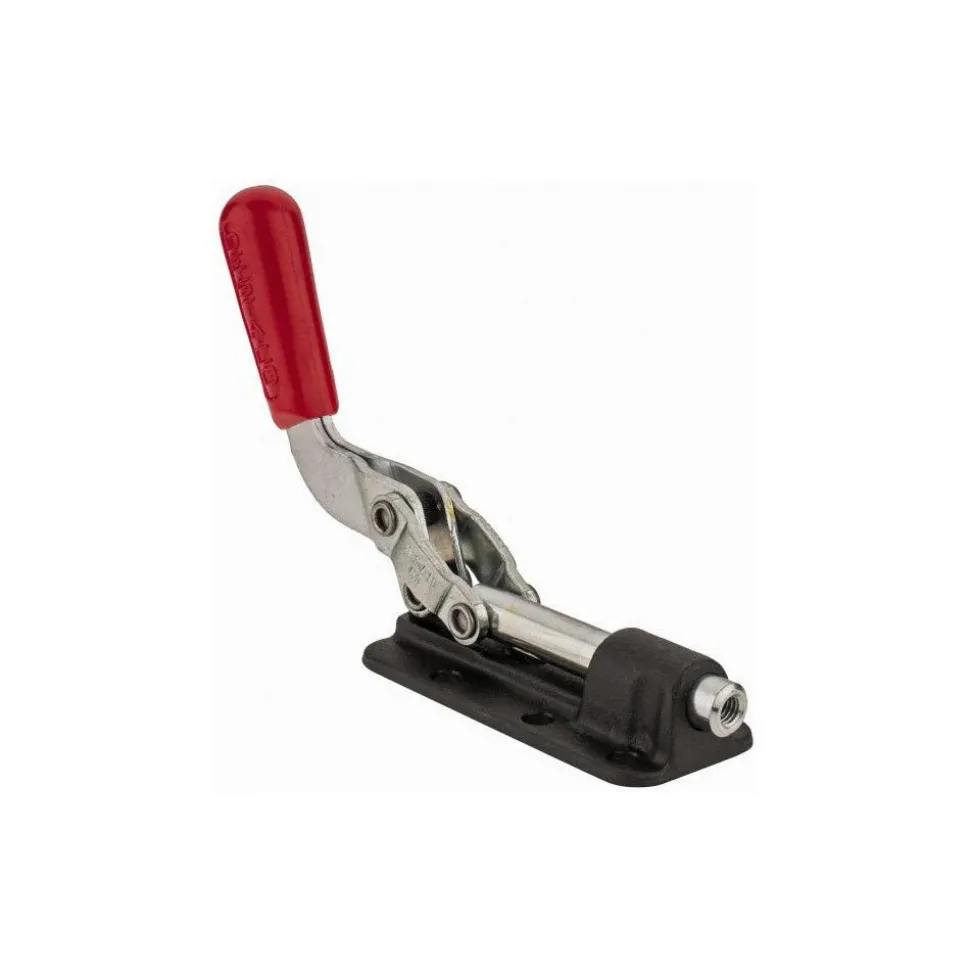

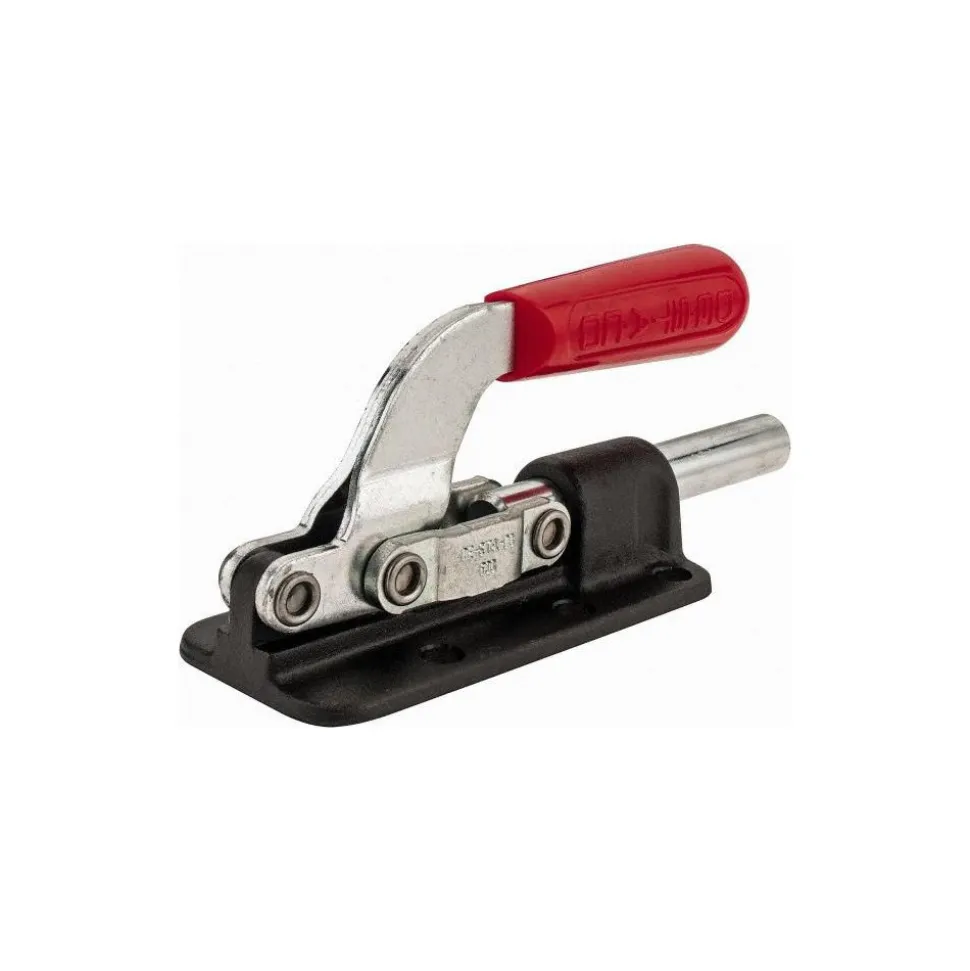

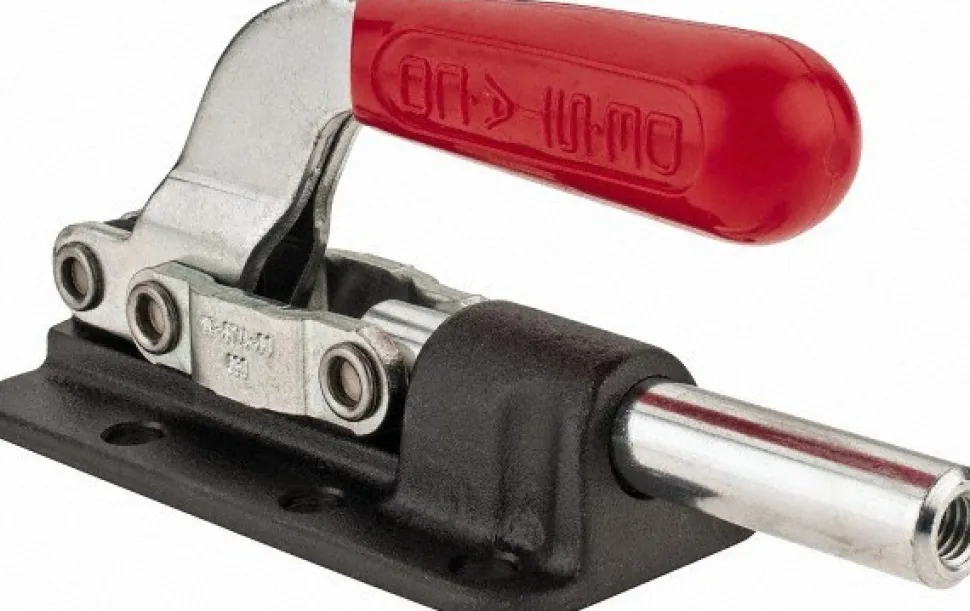

Standard Straight Line Action Clamp: 2,500 lb Load Capacity, 2″ Plunger Travel, Flanged Base, Carbon Steel
41,89 $
Specifications
| Load Capacity (Lb): 2500.000 | Load Capacity (N): 11120.60 |
| Load Capacity: 2500 lb; 11120.6 N | Plunger Travel (Decimal Inch): 2.0000 |
| Plunger Travel: 2 in; 50.8 mm | Plunger Travel (mm): 50.80 |
| Plunger Shape: Round | Plunger Thread Style: Internal |
| Plunger Thread Size: 3/8-16 | Plunger Centerline Height (mm): 20.57 |
| Plunger Centerline Height (Decimal Inch): 0.8100 | Plunger Centerline Height: 20.57 mm; 0.81 in |
| Plunger Diameter (mm): 15.75 | Plunger Diameter (Decimal Inch): 0.6200 |
| Base Style: Flanged | Handle Style: Straight |
| Clamp Material: Carbon Steel | Material: Carbon Steel |
| Overall Length (Decimal Inch): 7.0600 | Overall Length (mm): 179.32 |
| Overall Height (mm): 77.47 | Overall Height (Decimal Inch): 3.0500 |
| Base Length (mm): 127.76 | Base Length (Decimal Inch): 5.0300 |
| Base Width (Inch): 2.2500 | Base Width (mm): 57.15 |
| Handle Color: Red | Length Distance Between Mount Holes (mm): 35.05 |
| Length Distance Between Mount Holes (Inch): 1.3800 | Width Distance Between Mount Holes (Decimal Inch): 1.6300 |
| Width Distance Between Mount Holes (mm): 41.40 | Mounting Hole Diameter (mm): 8.64 |
| Maximum Mechanical Advantage: 36:1 (Pushing); 23:1 (Pulling) | Industry Number: 630 |
| UNSPSC Code: 27112100 | Front Of Base To Tip Of Toggle Bar: 2.0300 |
| Number Of Mounting Holes: 6.000 | Country of Origin: UNITED STATES |
| Load Capacity (Lb): 2500.000 | |
| Load Capacity (N): 11120.60 | |
| Load Capacity: 2500 lb; 11120.6 N | |
| Plunger Travel (Decimal Inch): 2.0000 | |
| Plunger Travel: 2 in; 50.8 mm | |
| Plunger Travel (mm): 50.80 | |
| Plunger Shape: Round | |
| Plunger Thread Style: Internal | |
| Plunger Thread Size: 3/8-16 | |
| Plunger Centerline Height (mm): 20.57 | |
| Plunger Centerline Height (Decimal Inch): 0.8100 | |
| Plunger Centerline Height: 20.57 mm; 0.81 in | |
| Plunger Diameter (mm): 15.75 | |
| Plunger Diameter (Decimal Inch): 0.6200 | |
| Base Style: Flanged | |
| Handle Style: Straight | |
| Clamp Material: Carbon Steel | |
| Material: Carbon Steel | |
| Overall Length (Decimal Inch): 7.0600 | |
| Overall Length (mm): 179.32 | |
| Overall Height (mm): 77.47 | |
| Overall Height (Decimal Inch): 3.0500 | |
| Base Length (mm): 127.76 | |
| Base Length (Decimal Inch): 5.0300 | |
| Base Width (Inch): 2.2500 | |
| Base Width (mm): 57.15 | |
| Handle Color: Red | |
| Length Distance Between Mount Holes (mm): 35.05 | |
| Length Distance Between Mount Holes (Inch): 1.3800 | |
| Width Distance Between Mount Holes (Decimal Inch): 1.6300 | |
| Width Distance Between Mount Holes (mm): 41.40 | |
| Mounting Hole Diameter (mm): 8.64 | |
| Maximum Mechanical Advantage: 36:1 (Pushing); 23:1 (Pulling) | |
| Industry Number: 630 | |
| UNSPSC Code: 27112100 | |
| Front Of Base To Tip Of Toggle Bar: 2.0300 | |
| Number Of Mounting Holes: 6.000 | |
| Country of Origin: UNITED STATES |
| MSC# | 06966550 |
| Mfr# | 630 |
| Big Book# | 1318 |
