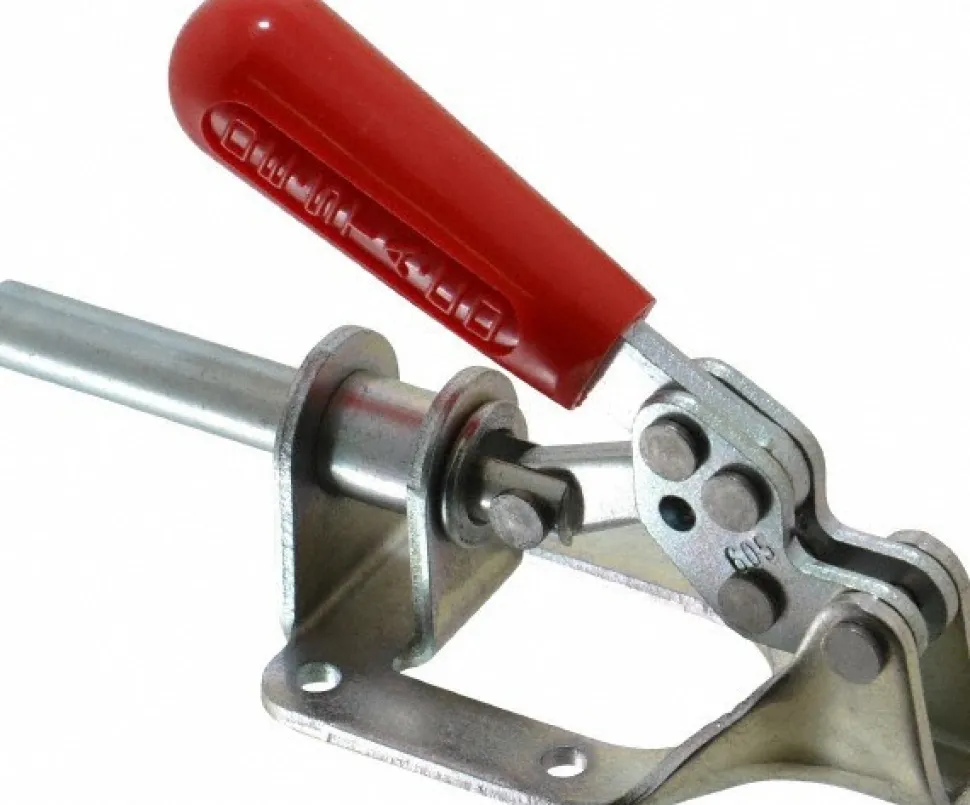

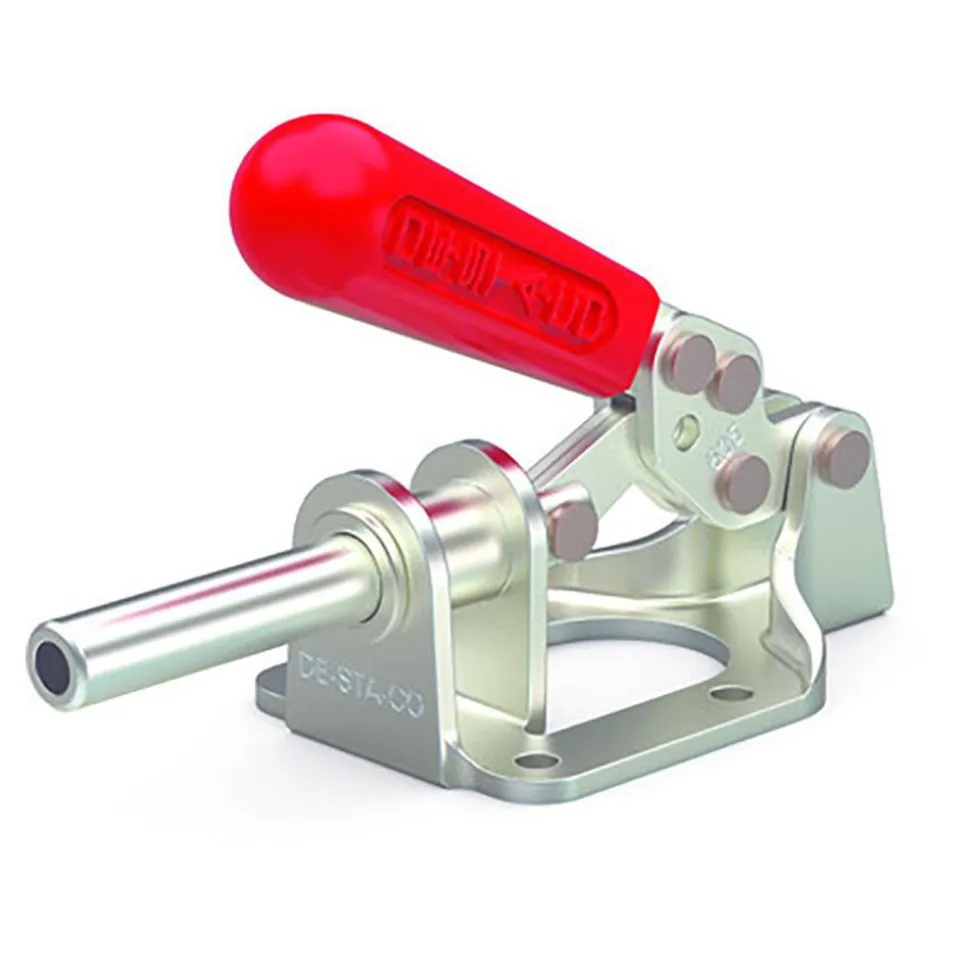

Standard Straight Line Action Clamp: 300 lb Load Capacity, 1.25″ Plunger Travel, Flanged Base, Carbon Steel
Original price was: 24,00 $.17,89 $Current price is: 17,89 $.
Specifications
| Load Capacity (Lb): 300.000 | Load Capacity (N): 1334.47 |
| Load Capacity: 300 lb; 1334.47 N | Plunger Travel (Decimal Inch): 1.2500 |
| Plunger Travel: 31.75 mm; 1.25 in | Plunger Travel (mm): 31.75 |
| Plunger Shape: Round | Plunger Thread Style: Internal |
| Plunger Thread Size: 5/16-18 | Plunger Centerline Height (mm): 24.64 |
| Plunger Centerline Height (Decimal Inch): 0.9700 | Plunger Centerline Height: 24.64 mm; 0.97 in |
| Plunger Diameter (mm): 11.18 | Plunger Diameter (Decimal Inch): 0.4400 |
| Base Style: Flanged | Handle Style: Straight |
| Clamp Material: Carbon Steel | Material: Carbon Steel |
| Overall Length (Decimal Inch): 5.4700 | Overall Length (mm): 138.94 |
| Overall Height (mm): 108.97 | Overall Height (Decimal Inch): 3.2900 |
| Base Length (mm): 86.61 | Base Length (Decimal Inch): 3.4100 |
| Base Width (Inch): 2.1900 | Base Width (mm): 55.63 |
| Handle Color: Red | Length Distance Between Mount Holes (mm): 35.05 |
| Length Distance Between Mount Holes (Inch): 1.3800 | Width Distance Between Mount Holes (Decimal Inch): 1.6300 |
| Width Distance Between Mount Holes (mm): 41.40 | Mounting Hole Diameter (mm): 5.59 |
| Maximum Mechanical Advantage: 45:1 (Pushing); 40:1 (Pulling) | Industry Number: 605 |
| UNSPSC Code: 27112100 | Front Of Base To Tip Of Toggle Bar: 1.9400 |
| Number Of Mounting Holes: 4.000 | Country of Origin: UNITED STATES |
| Load Capacity (Lb): 300.000 | |
| Load Capacity (N): 1334.47 | |
| Load Capacity: 300 lb; 1334.47 N | |
| Plunger Travel (Decimal Inch): 1.2500 | |
| Plunger Travel: 31.75 mm; 1.25 in | |
| Plunger Travel (mm): 31.75 | |
| Plunger Shape: Round | |
| Plunger Thread Style: Internal | |
| Plunger Thread Size: 5/16-18 | |
| Plunger Centerline Height (mm): 24.64 | |
| Plunger Centerline Height (Decimal Inch): 0.9700 | |
| Plunger Centerline Height: 24.64 mm; 0.97 in | |
| Plunger Diameter (mm): 11.18 | |
| Plunger Diameter (Decimal Inch): 0.4400 | |
| Base Style: Flanged | |
| Handle Style: Straight | |
| Clamp Material: Carbon Steel | |
| Material: Carbon Steel | |
| Overall Length (Decimal Inch): 5.4700 | |
| Overall Length (mm): 138.94 | |
| Overall Height (mm): 108.97 | |
| Overall Height (Decimal Inch): 3.2900 | |
| Base Length (mm): 86.61 | |
| Base Length (Decimal Inch): 3.4100 | |
| Base Width (Inch): 2.1900 | |
| Base Width (mm): 55.63 | |
| Handle Color: Red | |
| Length Distance Between Mount Holes (mm): 35.05 | |
| Length Distance Between Mount Holes (Inch): 1.3800 | |
| Width Distance Between Mount Holes (Decimal Inch): 1.6300 | |
| Width Distance Between Mount Holes (mm): 41.40 | |
| Mounting Hole Diameter (mm): 5.59 | |
| Maximum Mechanical Advantage: 45:1 (Pushing); 40:1 (Pulling) | |
| Industry Number: 605 | |
| UNSPSC Code: 27112100 | |
| Front Of Base To Tip Of Toggle Bar: 1.9400 | |
| Number Of Mounting Holes: 4.000 | |
| Country of Origin: UNITED STATES |
| MSC# | 06966352 |
| Mfr# | 605 |
| Big Book# | 1318 |
