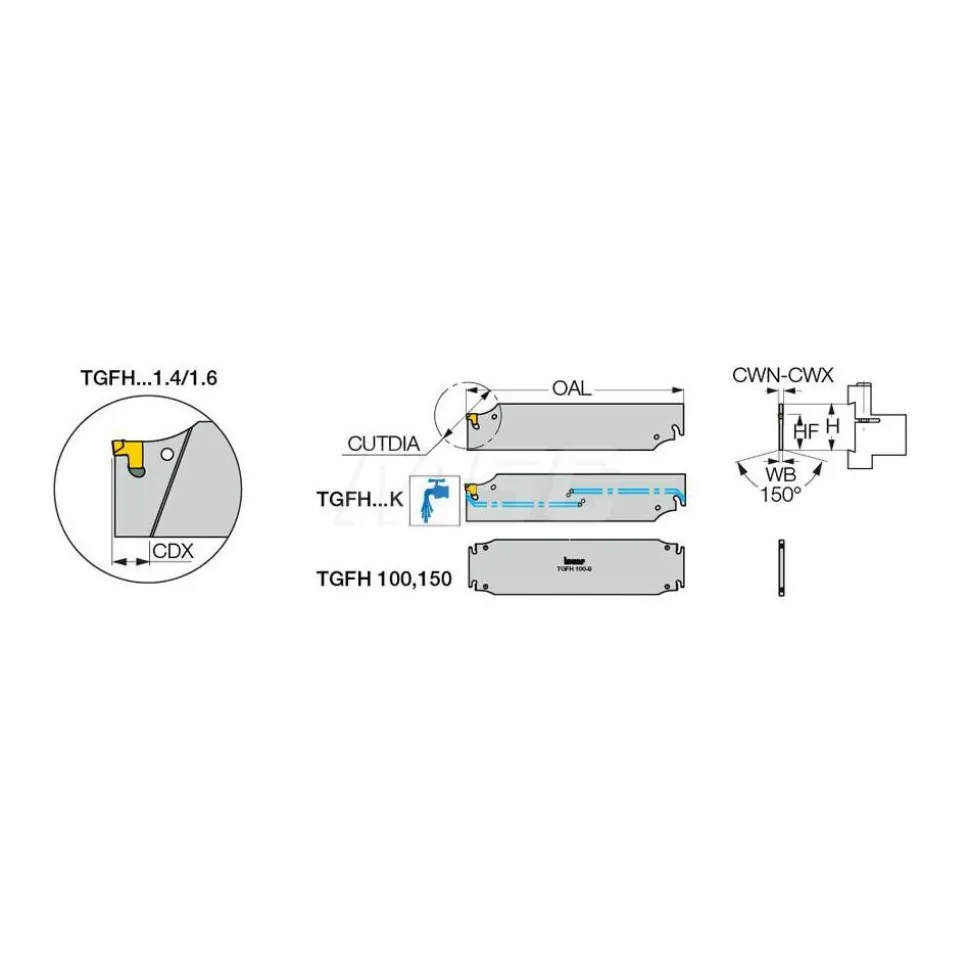

TGFH Single End Neutral Indexable Cutoff Blade
107,99 $
Specifications
| End Type: Single | Cutting Direction: Neutral |
| Blade Height (mm): 32.00 | Blade Height (Decimal Inch): 1.2598 |
| Blade Width (Decimal Inch): 0.1000 | Blade Width (mm): 2.50 |
| Blade Overall Length (Decimal Inch): 5.9055 | Blade Overall Length (mm): 150.00 |
| Blade Style: TGFH | Insert Holding Method: Self Grip |
| Maximum Workpiece Diameter (Decimal Inch): 1.9685 | Series: Tang-Grip; Sumo-Grip |
| Tool Block Style: UBHCR/L; HSK A-WH-TBK-R/L; SGTBF; SGTBK; SGTBU/SGTBN | Insert Style: TAG N-A; TAG N-UT; TAG N-C/W/M; TAG N-MF; TAG N-LF; TAG N-J/JS/JT; TAG R/L-J/JS; TAG R/L-C |
| Cutting Tool Application: Grooving; Turning; Parting | Insert Width (mm): 1.80 |
| Standards: ISO 13399 | Cutting Height (mm): 24.80 |
| Cutting Height (Decimal Inch): 0.9764 | Minimum Insert Width (Decimal Inch): 0.0709 |
| Minimum Insert Width (mm): 1.80 | Maximum Insert Width (mm): 2.40 |
| Maximum Insert Width (Decimal Inch): 0.0945 | Complete Insert Compatibility: TAG L2JS-6D; TAG N2LF; TAG R2J-6D; TAG N2MF; TAG L2J-15D; TAG R2JS-6D; TAG N2A; TAG L2J-6D; TAG N2UT |
| Complete Tool Block/Toolholder Style Compatibility: SGTBF 25.4-A; SGTBU 19-6G; SGTBU 25.4-6G; SGTBU 38.1-6G; HSK A63WH-TBK-32R; HSK A100WH-TBK-32L; HSK A63WH-TBK-32L; SGTBU 25.4C-6; SGTBF 31.7-A; SGTBK 32-9; SGTBU 31.8-6G; UBHCL 25.4-32; UBHCR 25.4-32 | Insert Width: 0.0709 |
| UNSPSC Code: 23241600 | Country of Origin: Israel |
| End Type: Single | |
| Cutting Direction: Neutral | |
| Blade Height (mm): 32.00 | |
| Blade Height (Decimal Inch): 1.2598 | |
| Blade Width (Decimal Inch): 0.1000 | |
| Blade Width (mm): 2.50 | |
| Blade Overall Length (Decimal Inch): 5.9055 | |
| Blade Overall Length (mm): 150.00 | |
| Blade Style: TGFH | |
| Insert Holding Method: Self Grip | |
| Maximum Workpiece Diameter (Decimal Inch): 1.9685 | |
| Series: Tang-Grip; Sumo-Grip | |
| Tool Block Style: UBHCR/L; HSK A-WH-TBK-R/L; SGTBF; SGTBK; SGTBU/SGTBN | |
| Insert Style: TAG N-A; TAG N-UT; TAG N-C/W/M; TAG N-MF; TAG N-LF; TAG N-J/JS/JT; TAG R/L-J/JS; TAG R/L-C | |
| Cutting Tool Application: Grooving; Turning; Parting | |
| Insert Width (mm): 1.80 | |
| Standards: ISO 13399 | |
| Cutting Height (mm): 24.80 | |
| Cutting Height (Decimal Inch): 0.9764 | |
| Minimum Insert Width (Decimal Inch): 0.0709 | |
| Minimum Insert Width (mm): 1.80 | |
| Maximum Insert Width (mm): 2.40 | |
| Maximum Insert Width (Decimal Inch): 0.0945 | |
| Complete Insert Compatibility: TAG L2JS-6D; TAG N2LF; TAG R2J-6D; TAG N2MF; TAG L2J-15D; TAG R2JS-6D; TAG N2A; TAG L2J-6D; TAG N2UT | |
| Complete Tool Block/Toolholder Style Compatibility: SGTBF 25.4-A; SGTBU 19-6G; SGTBU 25.4-6G; SGTBU 38.1-6G; HSK A63WH-TBK-32R; HSK A100WH-TBK-32L; HSK A63WH-TBK-32L; SGTBU 25.4C-6; SGTBF 31.7-A; SGTBK 32-9; SGTBU 31.8-6G; UBHCL 25.4-32; UBHCR 25.4-32 | |
| Insert Width: 0.0709 | |
| UNSPSC Code: 23241600 | |
| Country of Origin: Israel |
| MSC# | 45822913 |
| Mfr# | 2301861 |
