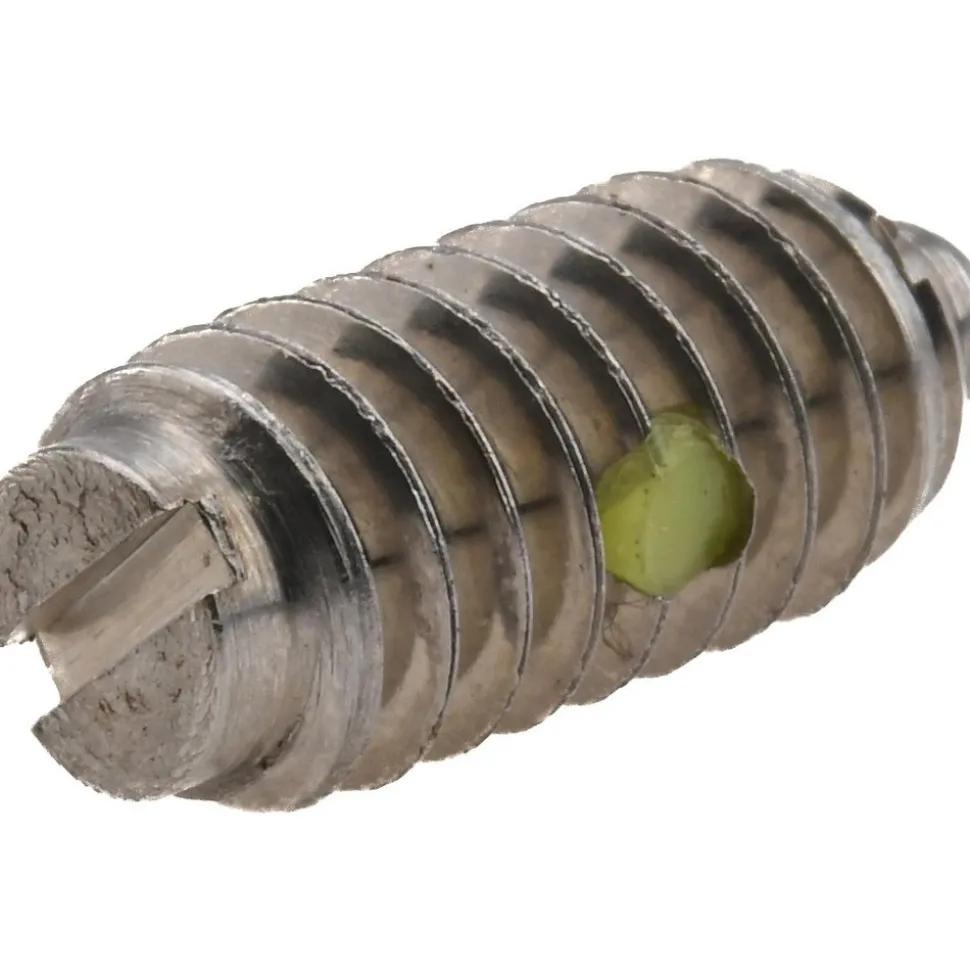

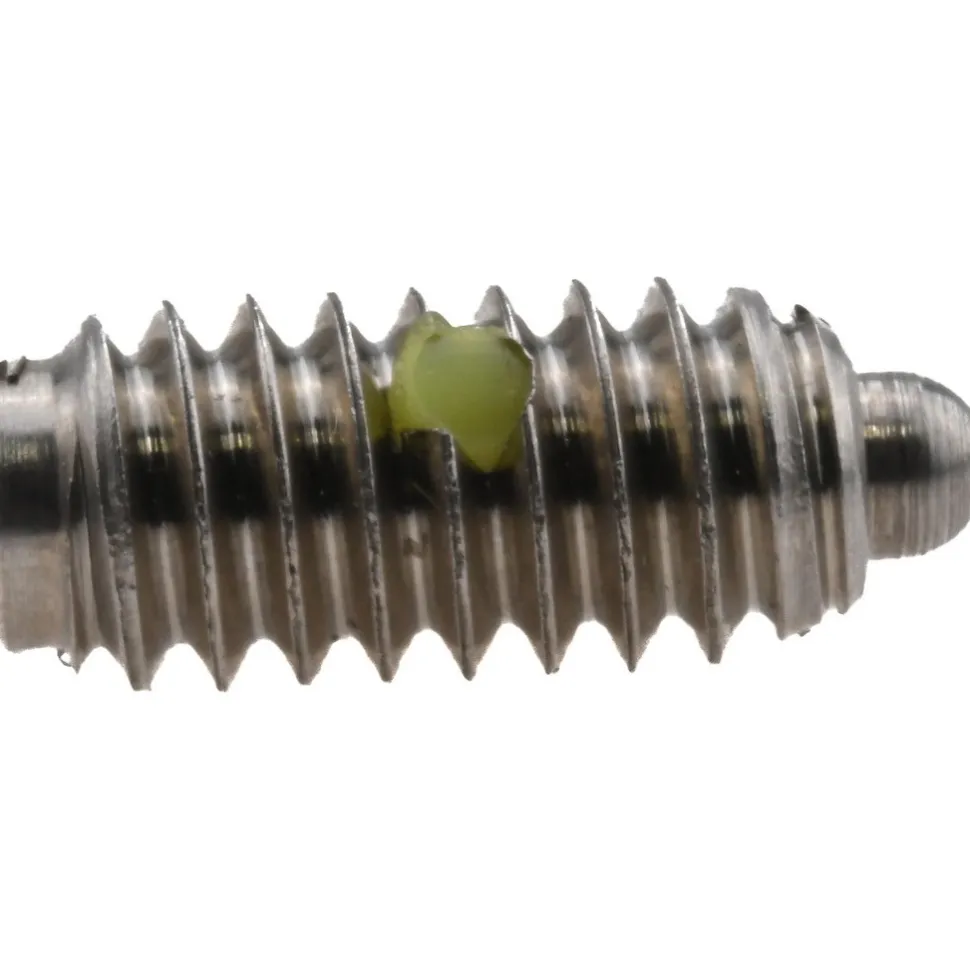

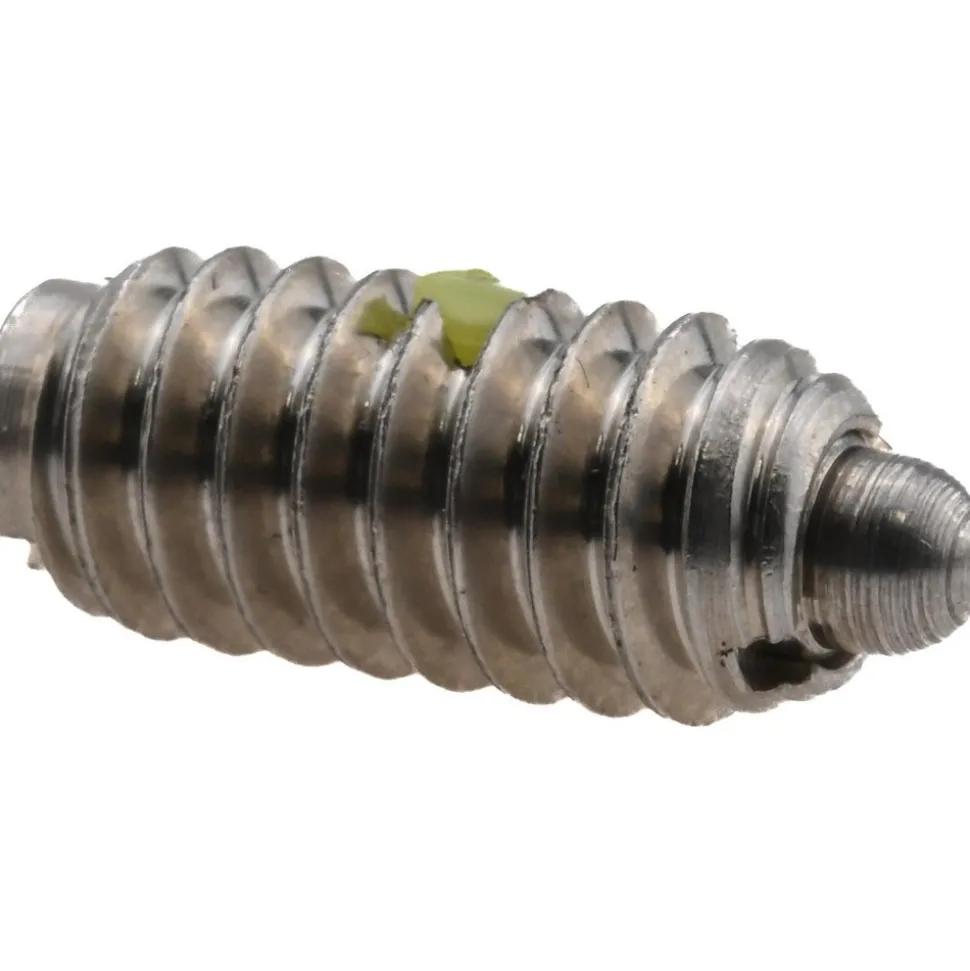

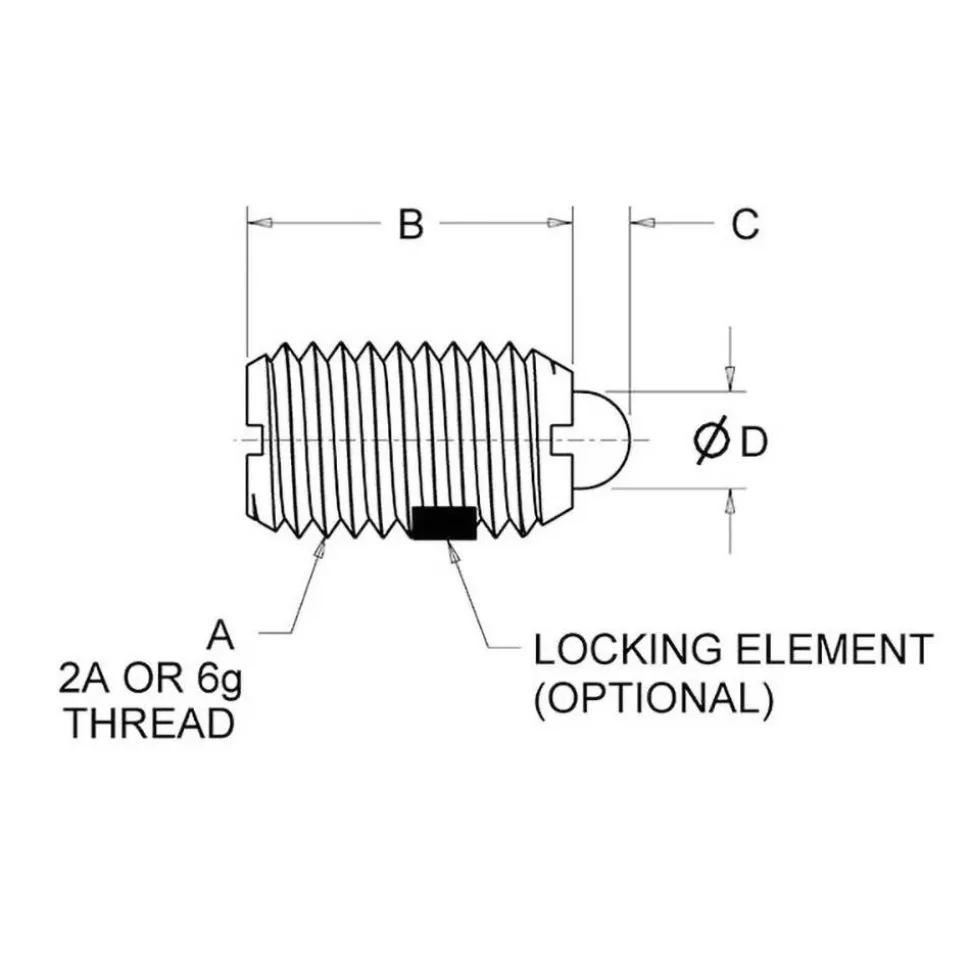

Threaded Spring Plunger: 1/4-20, 0.531" Thread Length, 0.119" Dia, 0.078" Projection

Threaded Spring Plunger: 1/4-20, 0.531″ Thread Length, 0.119″ Dia, 0.078″ Projection

4,89 $

SKU: SKUzLHCOPA70i Categories: Clamping, Workholding & Positioning, Locating & Positioning Components, Shop All Products Tag: Vlier Brand: Vlier

Description
Reviews (0)

Specifications

Plunger Length Type: Stubby	Plunger Projection (Decimal Inch): 0.0780
Body Length (Decimal Inch): 0.5310	Initial End Force (Lb.): 3.00
Final End Force (Lb.): 10.50	Thread Size: 1/4-20
Body Material: Stainless Steel	Nose Material: Stainless Steel
Thread Length (Decimal Inch): 0.5310	Maximum Plunger Diameter (Decimal Inch): 0.1190
Locking Element: Yes	Application: High End Force; Restricted Space
UNSPSC Code: 23251800	Country of Origin: UNITED STATES
Plunger Length Type: Stubby
Plunger Projection (Decimal Inch): 0.0780
Body Length (Decimal Inch): 0.5310
Initial End Force (Lb.): 3.00
Final End Force (Lb.): 10.50
Thread Size: 1/4-20
Body Material: Stainless Steel
Nose Material: Stainless Steel
Thread Length (Decimal Inch): 0.5310
Maximum Plunger Diameter (Decimal Inch): 0.1190
Locking Element: Yes
Application: High End Force; Restricted Space
UNSPSC Code: 23251800
Country of Origin: UNITED STATES
