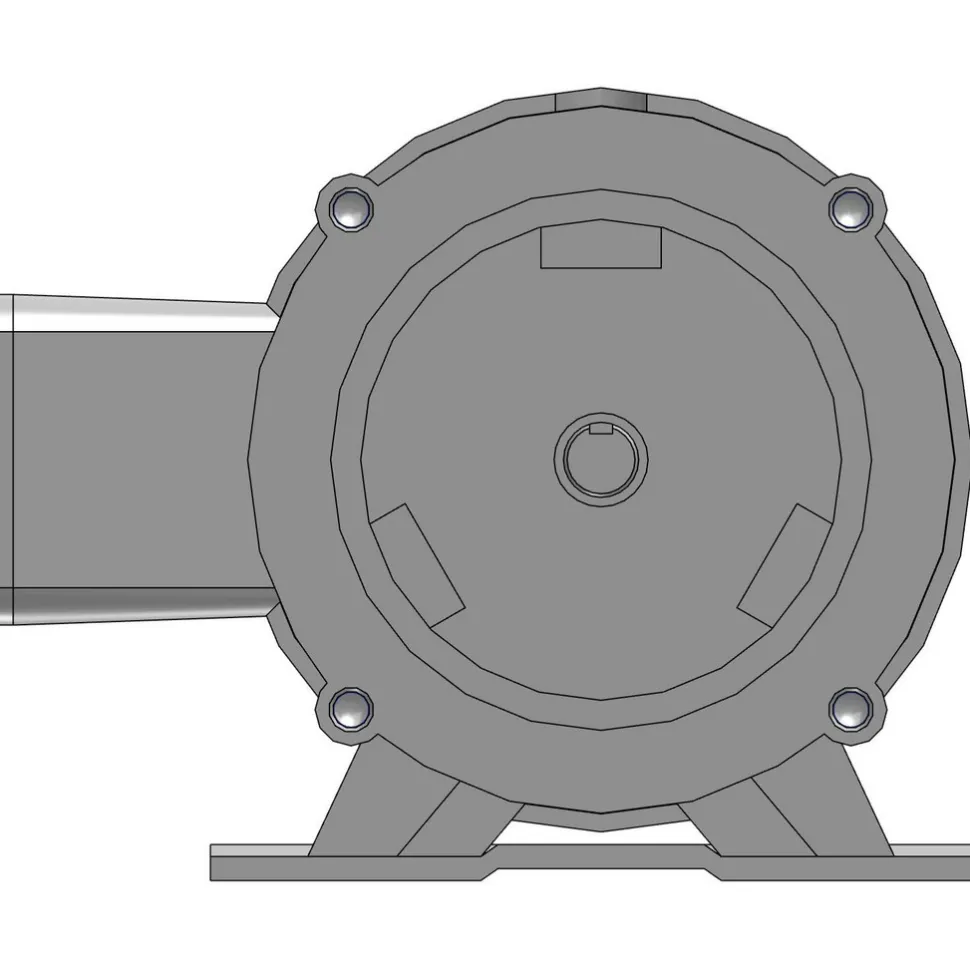

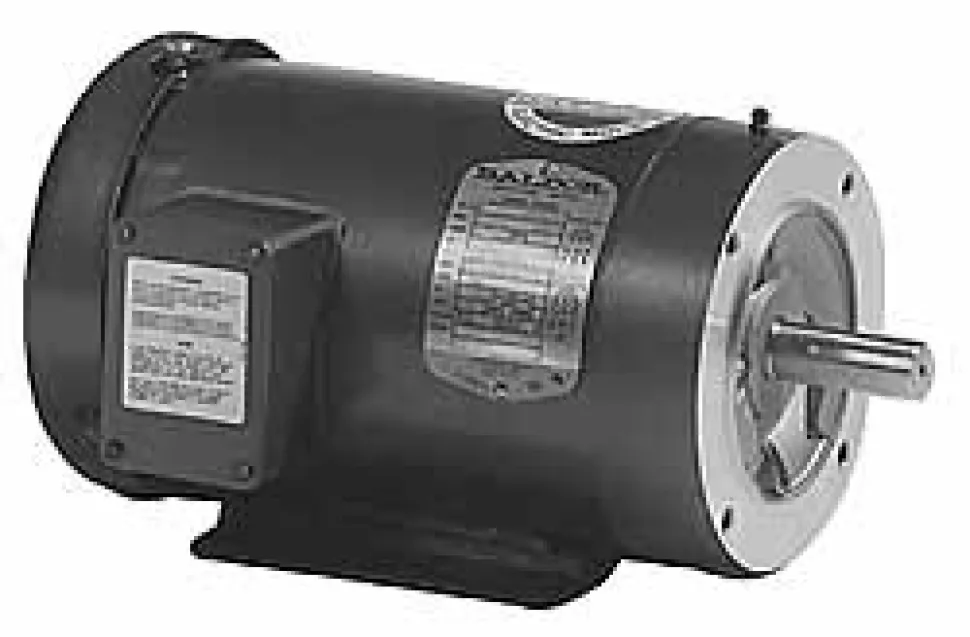

Three Phase AC Motor: TEFC Enclosure

128,89 $

Specifications

Motor Type: Three Phase	Enclosure Style: TEFC
Maximum HorsePower: 1/2	Nameplate Rpm: 1720
Voltage: 230 V @ 60 HZ V; 460 V @ 60 HZ V	Frame Size: 56C
Mount Style: Rigid Base; C-Face	Application: General Purpose
Number Of Phases: 3	Overall Length (Decimal Inch): 11.3800
Motor Rotation: Reversible	Service Factor Rating: 1.25
Insulation Class: B	Full Load Amperage: 0.8 A
Input Current: AC	UNSPSC Code: 26111600
Product Service Code: 6105
Motor Type: Three Phase
Enclosure Style: TEFC
Maximum HorsePower: 1/2
Nameplate Rpm: 1720
Voltage: 230 V @ 60 HZ V; 460 V @ 60 HZ V
Frame Size: 56C
Mount Style: Rigid Base; C-Face
Application: General Purpose
Number Of Phases: 3
Overall Length (Decimal Inch): 11.3800
Motor Rotation: Reversible
Service Factor Rating: 1.25
Insulation Class: B
Full Load Amperage: 0.8 A
Input Current: AC
UNSPSC Code: 26111600
Product Service Code: 6105
