Sale!

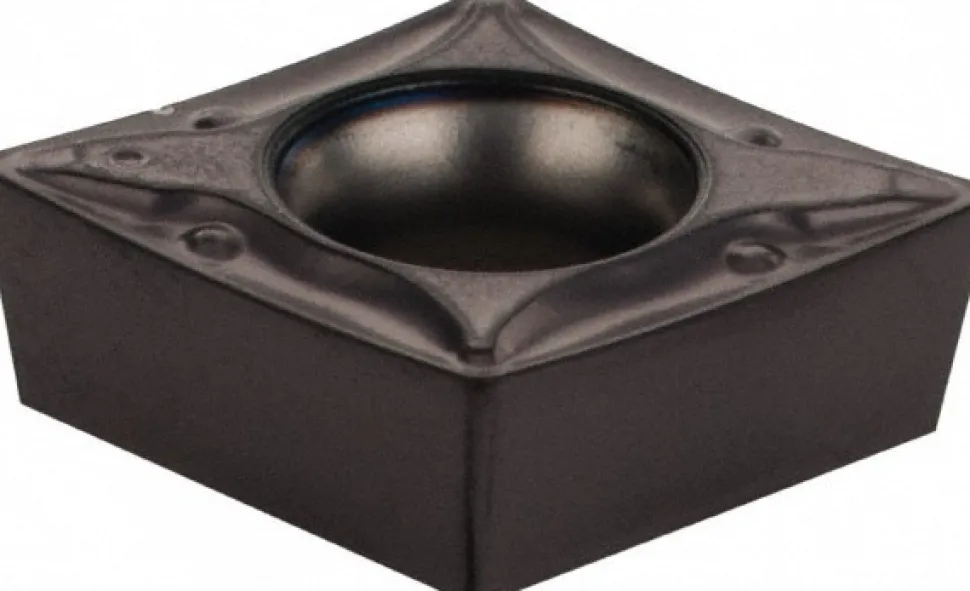

Turning Insert: CCMT 3-1-PF IC907, Carbide
Original price was: 20,00 $.14,89 $Current price is: 14,89 $.

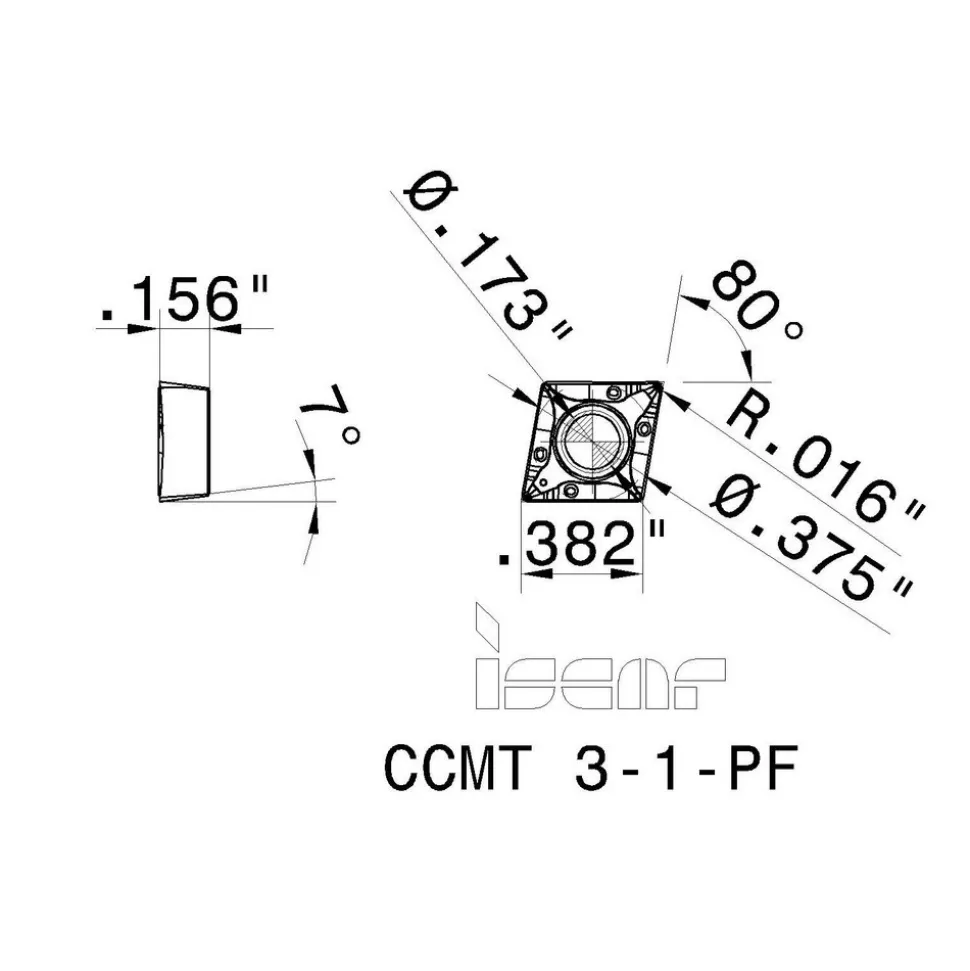

Specifications
| Insert Style: CCMT | ANSI Size Code: 3-1 |
| ISO Size Code: 09T304 | Insert Shape: C – Diamond (Rhombic) 80-Deg |
| Included Angle: 80.00 | Inscribed Circle (Decimal Inch): 0.3752 |
| Inscribed Circle (Inch): 3/8 | Corner Radius (Inch): 1/64 |
| Corner Radius (Decimal Inch): 0.0157 | Insert Material: Carbide |
| Manufacturer Grade: IC907 | Coating/Finish: TiN; TiAlN |
| Relief Angle: 7.000 | Insert Thickness (Inch): 5/32 |
| Insert Thickness (Decimal Inch): 0.1563 | Series: Isoturn |
| Chip Breaker Operation: Finishing | Grade Characteristics: Cast Iron (K) – High Wear-Resistance; Aluminum & Non-Ferrous (N) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Steel (P) – High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Side Clearance: Positive | Hole Diameter (Decimal Inch): 0.1732 |
| Hole Diameter (mm): 4.40 | Maximum Depth of Cut (mm): 3.50 |
| Maximum Depth of Cut (Decimal Inch): 0.1378 | ANSI Insert Code: CCMT3-1 |
| ISO Insert Code: CCMT09T304 | Insert Holding Method: Screw |
| Clearance Code: C | Tolerance Code: M |
| Coating Process: PVD | Rake: Positive |
| Insert Length (Decimal Inch): 0.3819 | Insert Length (mm): 9.70 |
| Primary Workpiece Material Code: P; S; K; M; N | Iso Code: CCMT32.51 |
| Standards: ISO 13399 | Material Grade: C7; C8 |
| Chip Breaker: PF | UNSPSC Code: 23242105 |
| Country of Origin: Israel | |
| Insert Style: CCMT | |
| ANSI Size Code: 3-1 | |
| ISO Size Code: 09T304 | |
| Insert Shape: C – Diamond (Rhombic) 80-Deg | |
| Included Angle: 80.00 | |
| Inscribed Circle (Decimal Inch): 0.3752 | |
| Inscribed Circle (Inch): 3/8 | |
| Corner Radius (Inch): 1/64 | |
| Corner Radius (Decimal Inch): 0.0157 | |
| Insert Material: Carbide | |
| Manufacturer Grade: IC907 | |
| Coating/Finish: TiN; TiAlN | |
| Relief Angle: 7.000 | |
| Insert Thickness (Inch): 5/32 | |
| Insert Thickness (Decimal Inch): 0.1563 | |
| Series: Isoturn | |
| Chip Breaker Operation: Finishing | |
| Grade Characteristics: Cast Iron (K) – High Wear-Resistance; Aluminum & Non-Ferrous (N) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Steel (P) – High Wear-Resistance to Moderate Wear-Resistance and Toughness | |
| Side Clearance: Positive | |
| Hole Diameter (Decimal Inch): 0.1732 | |
| Hole Diameter (mm): 4.40 | |
| Maximum Depth of Cut (mm): 3.50 | |
| Maximum Depth of Cut (Decimal Inch): 0.1378 | |
| ANSI Insert Code: CCMT3-1 | |
| ISO Insert Code: CCMT09T304 | |
| Insert Holding Method: Screw | |
| Clearance Code: C | |
| Tolerance Code: M | |
| Coating Process: PVD | |
| Rake: Positive | |
| Insert Length (Decimal Inch): 0.3819 | |
| Insert Length (mm): 9.70 | |
| Primary Workpiece Material Code: P; S; K; M; N | |
| Iso Code: CCMT32.51 | |
| Standards: ISO 13399 | |
| Material Grade: C7; C8 | |
| Chip Breaker: PF | |
| UNSPSC Code: 23242105 | |
| Country of Origin: Israel |
| MSC# | 05561428 |
| Mfr# | 5592971 |
| Big Book# | 754 |
