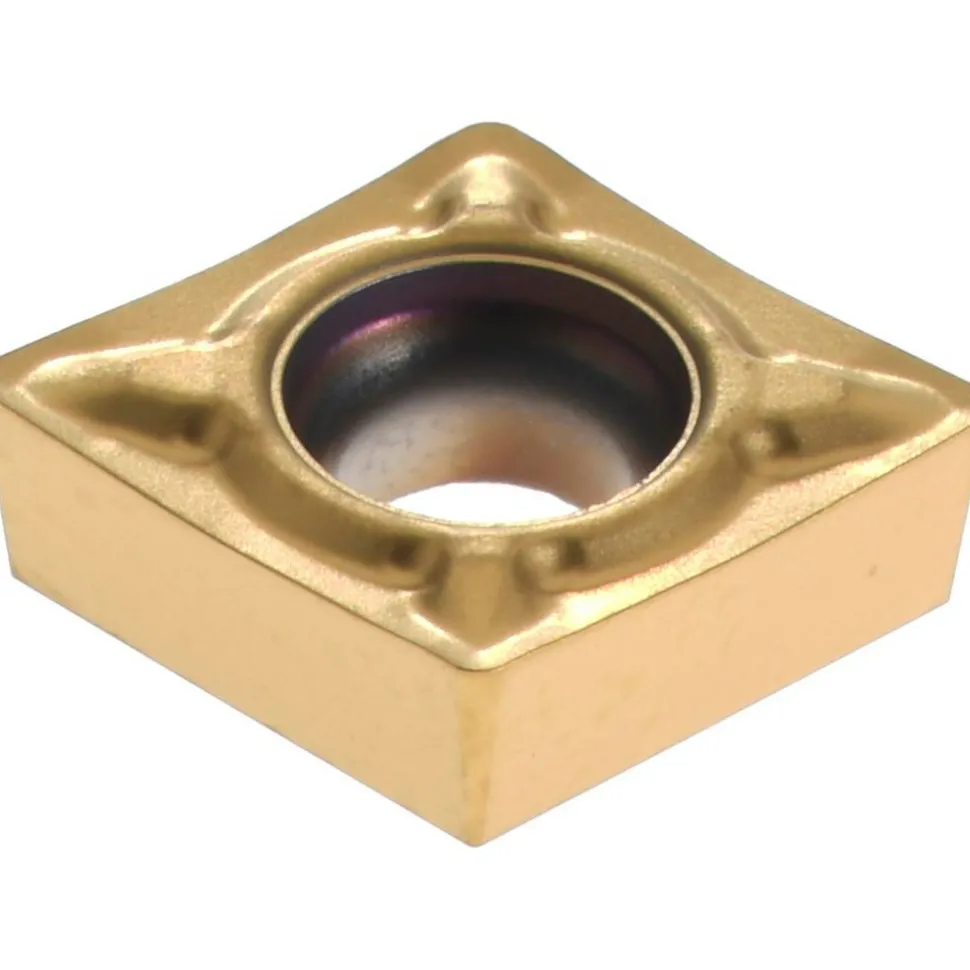

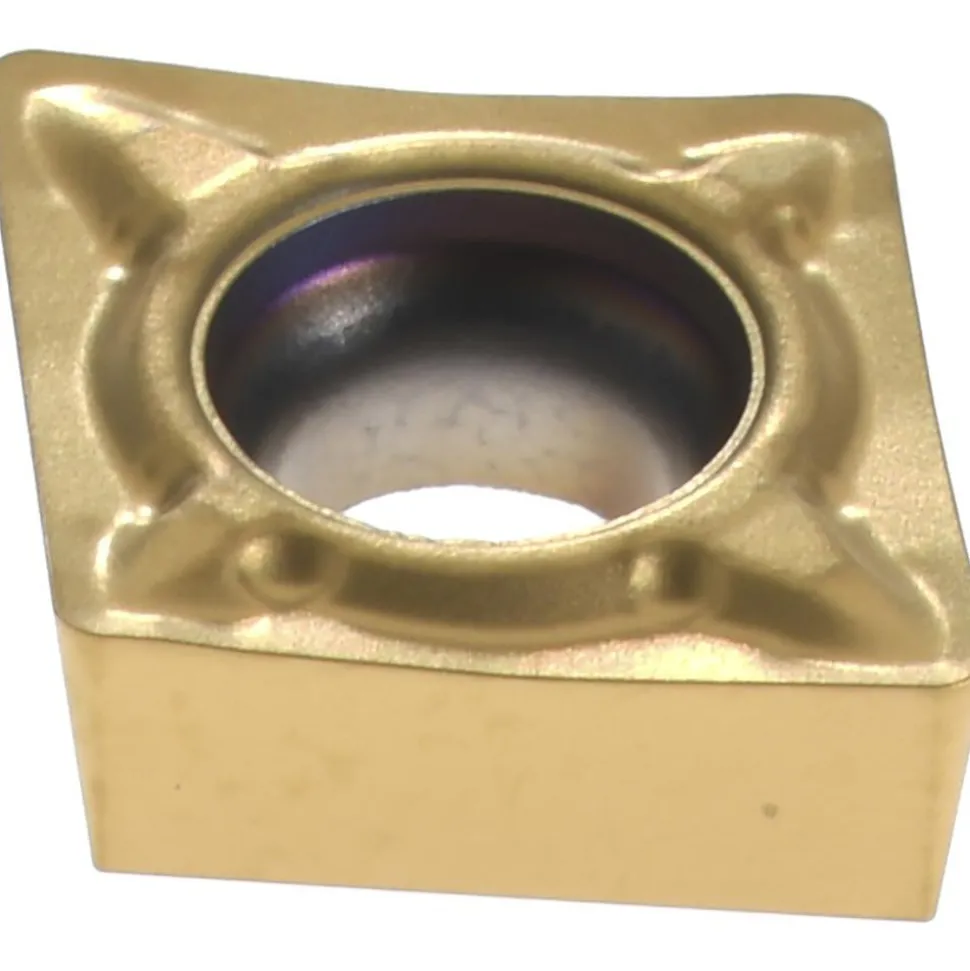

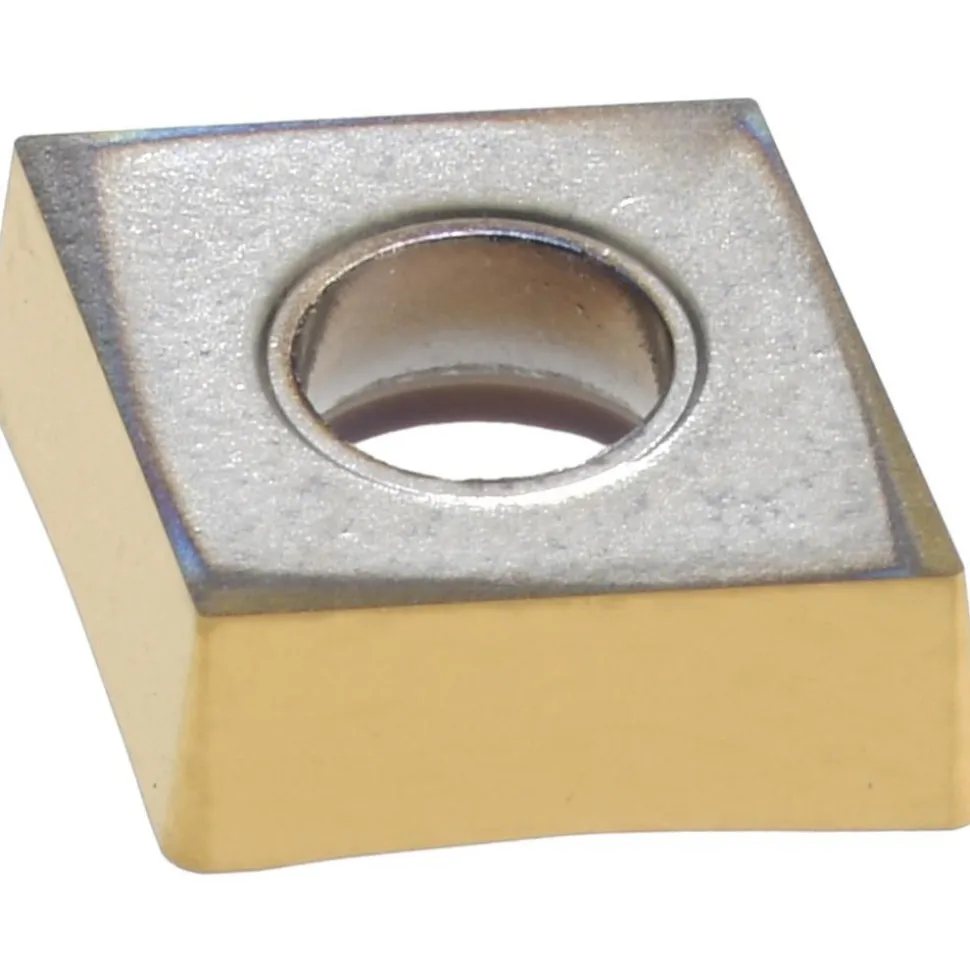

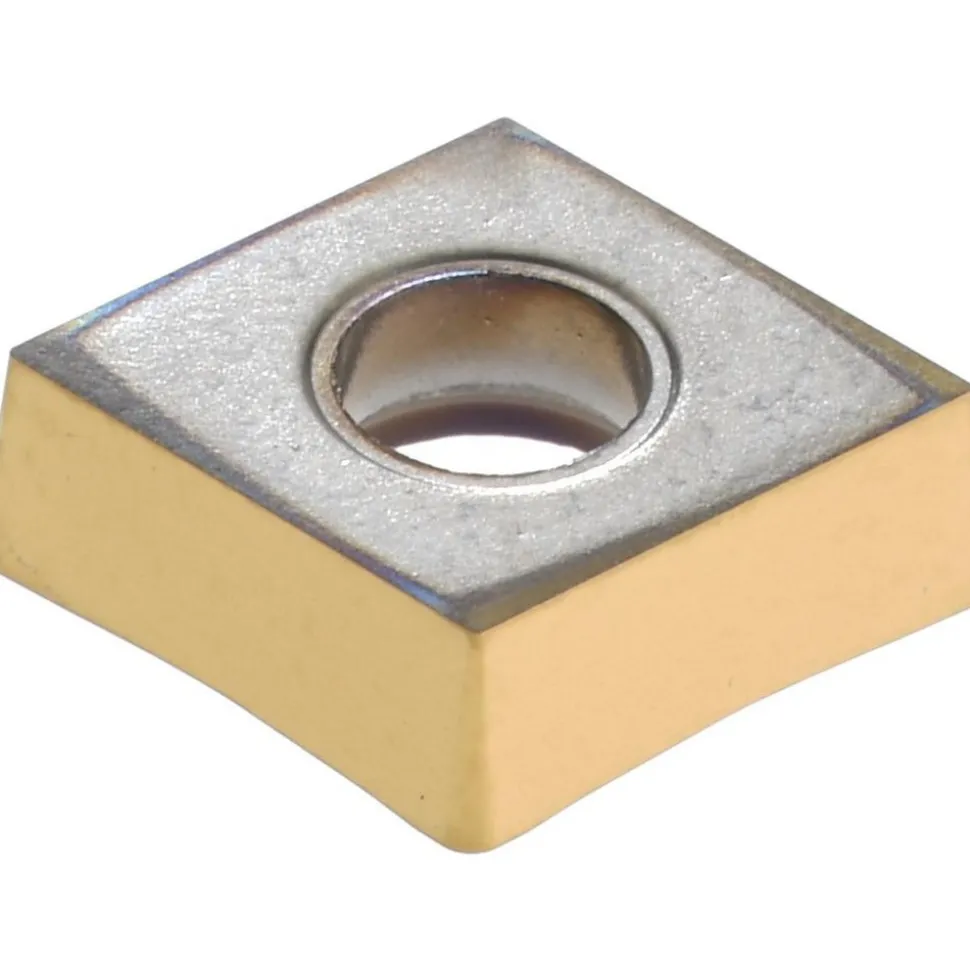

Turning Insert: CCMT21.51-F1 CP500, Carbide

Turning Insert: CCMT21.51-F1 CP500, Carbide

11,99 $

SKU: SKU2DZ1HN5e3J Categories: Indexable Cutting Tools, Indexable Inserts, Shop All Products Tag: Seco Brand: Seco

Description
Reviews (0)

Specifications

Insert Style: CCMT	ANSI Size Code: 21.51
ISO Size Code: 060204	Insert Shape: C – Diamond (Rhombic) 80-Deg
Included Angle: 80.00	Inscribed Circle (Decimal Inch): 0.2500
Inscribed Circle (Inch): 1/4	Inscribed Circle (mm): 6.35
Corner Radius (Inch): 1/64	Corner Radius (Decimal Inch): 0.0157
Insert Material: Carbide	Manufacturer Grade: CP500
Coating/Finish: TiN; TiAlN	Relief Angle: 7.000
Wiper Edge: No	Insert Thickness (Inch): 3/32
Insert Thickness (Decimal Inch): 0.0937	Insert Hand: Neutral
Series: CCMT-F1	Chip Breaker Operation: Finishing
Grade Characteristics: Cast Iron (K) – Moderate Wear-Resistance and Toughness to High Toughness; Steel (P) – Moderate Wear-Resistance and Toughness to High Toughness; Special, Super Alloys (S) – High Wear-Resistance to Moderate Wear-Resistance and Toughness	Side Clearance: Positive
Number Of Cutting Edges: 4	Hole Diameter (Decimal Inch): 0.1142
Maximum Depth of Cut (Decimal Inch): 0.2362	ANSI Insert Code: CCMT21.51
ISO Insert Code: CCMT060204	Insert Holding Method: Screw
Width (Inch): 1/4	Clearance Code: C
Tolerance Code: M	Coating Process: PVD
Rake: Positive	Insert Length (Decimal Inch): 0.2559
Primary Workpiece Material: Stainless Steel	Primary Workpiece Material Code: P; S; K
Secondary Workpiece Material: Cast Iron; Superalloys & Titanium; Steel	Secondary Workpiece Material Code: P; S; K
Iso Code: CCMT060204-F1	Standards: ISO; ANSI
Manufacturers Catalog Number: 00096854	Material Grade: M20; M30; M10
Proprietary Coating Designation: Multilayer Coating	Lead Angle: 80.000
Coating Classification: PVD	Chip Breaker: F1
Cutting Edge Style: Sharp	Industry Standard Number: CCMT21.51-F1
Width (Decimal Inch – 4 Decimals): 0.2500	Multi-Use Tool: Yes
Full Radius: No	Multi-Use Application: Facing; Turning; Boring
UNSPSC Code: 23242105	Country of Origin: Sweden
Insert Style: CCMT
ANSI Size Code: 21.51
ISO Size Code: 060204
Insert Shape: C – Diamond (Rhombic) 80-Deg
Included Angle: 80.00
Inscribed Circle (Decimal Inch): 0.2500
Inscribed Circle (Inch): 1/4
Inscribed Circle (mm): 6.35
Corner Radius (Inch): 1/64
Corner Radius (Decimal Inch): 0.0157
Insert Material: Carbide
Manufacturer Grade: CP500
Coating/Finish: TiN; TiAlN
Relief Angle: 7.000
Wiper Edge: No
Insert Thickness (Inch): 3/32
Insert Thickness (Decimal Inch): 0.0937
Insert Hand: Neutral
Series: CCMT-F1
Chip Breaker Operation: Finishing
Grade Characteristics: Cast Iron (K) – Moderate Wear-Resistance and Toughness to High Toughness; Steel (P) – Moderate Wear-Resistance and Toughness to High Toughness; Special, Super Alloys (S) – High Wear-Resistance to Moderate Wear-Resistance and Toughness
Side Clearance: Positive
Number Of Cutting Edges: 4
Hole Diameter (Decimal Inch): 0.1142
Maximum Depth of Cut (Decimal Inch): 0.2362
ANSI Insert Code: CCMT21.51
ISO Insert Code: CCMT060204
Insert Holding Method: Screw
Width (Inch): 1/4
Clearance Code: C
Tolerance Code: M
Coating Process: PVD
Rake: Positive
Insert Length (Decimal Inch): 0.2559
Primary Workpiece Material: Stainless Steel
Primary Workpiece Material Code: P; S; K
Secondary Workpiece Material: Cast Iron; Superalloys & Titanium; Steel
Secondary Workpiece Material Code: P; S; K
Iso Code: CCMT060204-F1
Standards: ISO; ANSI
Manufacturers Catalog Number: 00096854
Material Grade: M20; M30; M10
Proprietary Coating Designation: Multilayer Coating
Lead Angle: 80.000
Coating Classification: PVD
Chip Breaker: F1
Cutting Edge Style: Sharp
Industry Standard Number: CCMT21.51-F1
Width (Decimal Inch – 4 Decimals): 0.2500
Multi-Use Tool: Yes
Full Radius: No
Multi-Use Application: Facing; Turning; Boring
UNSPSC Code: 23242105
Country of Origin: Sweden
