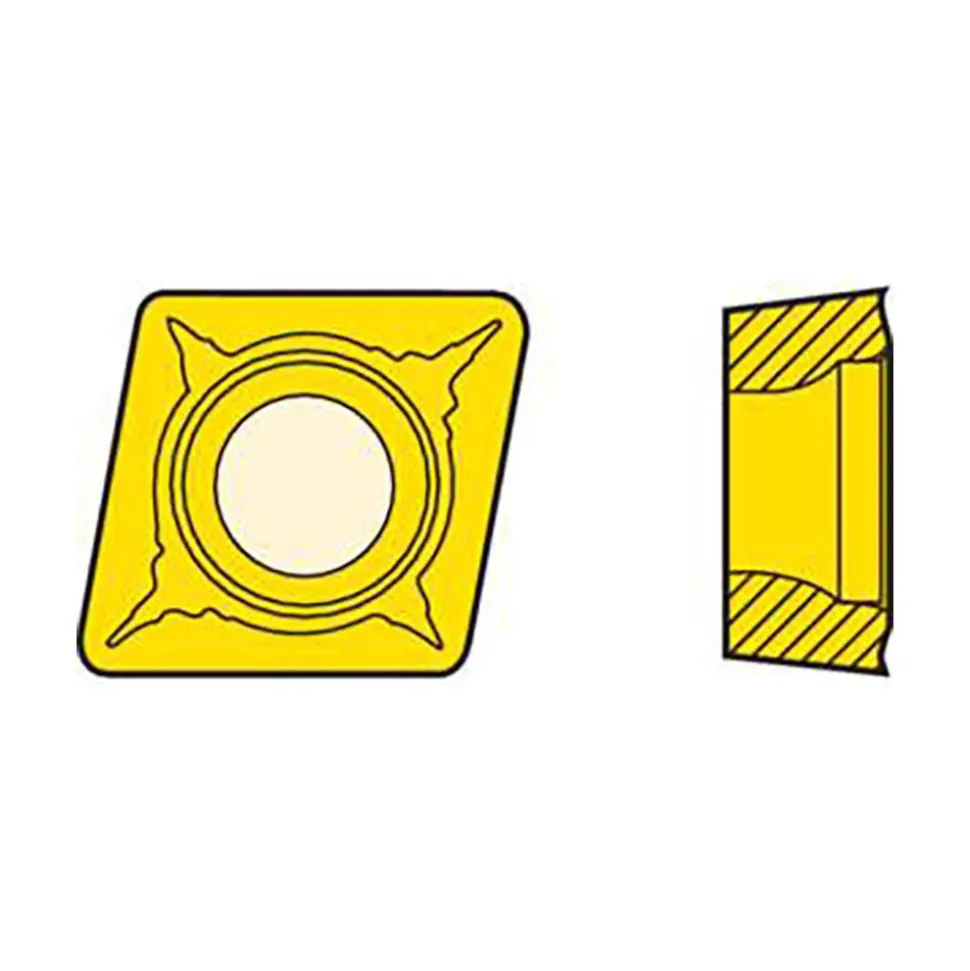

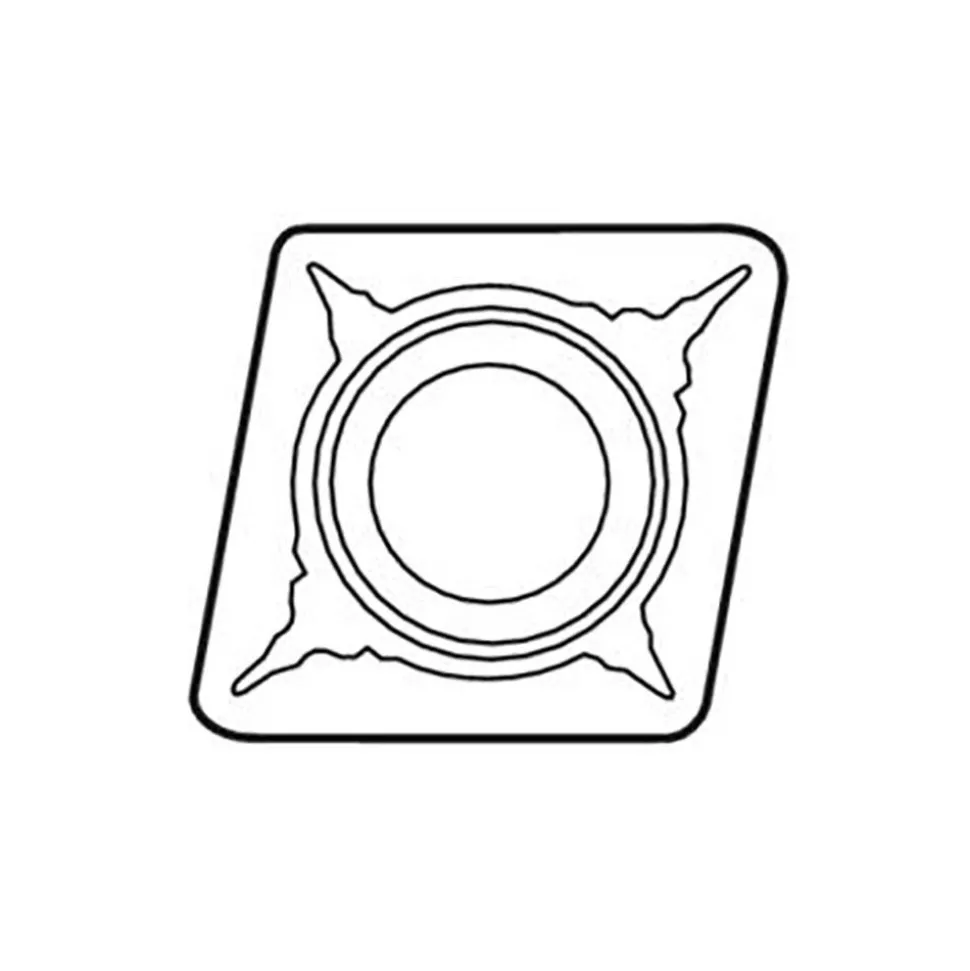

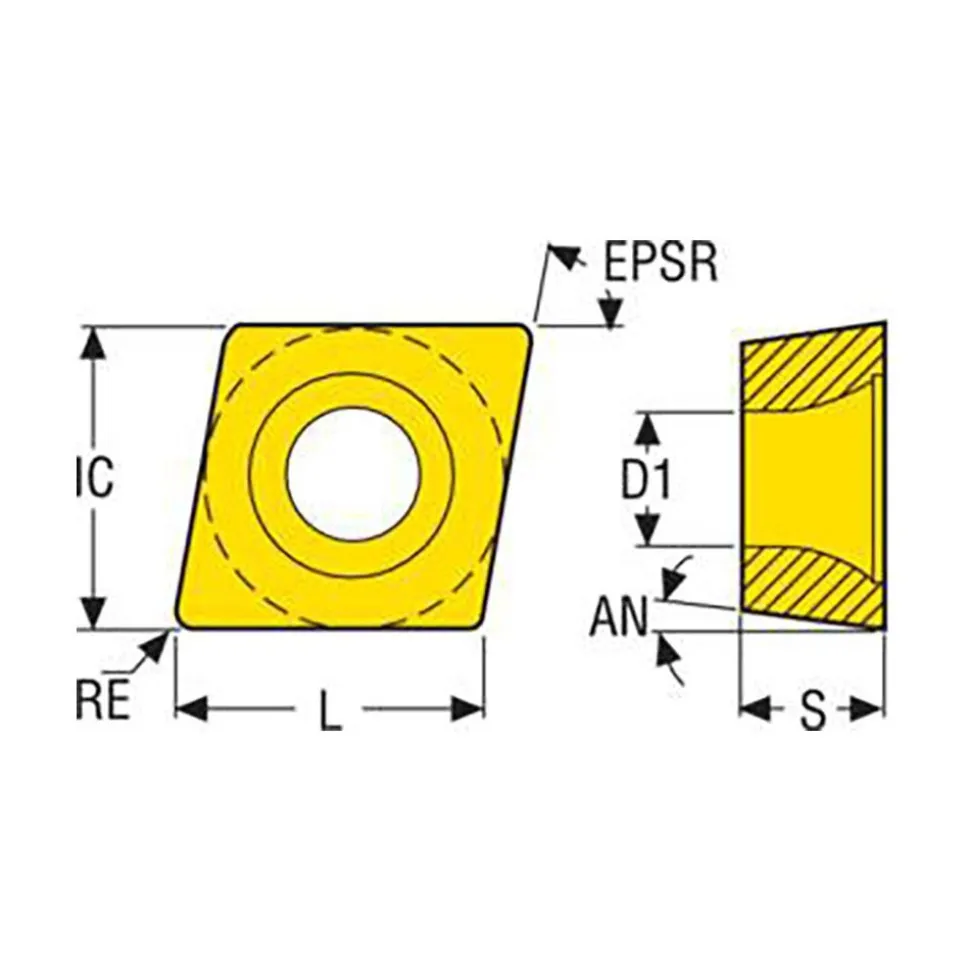

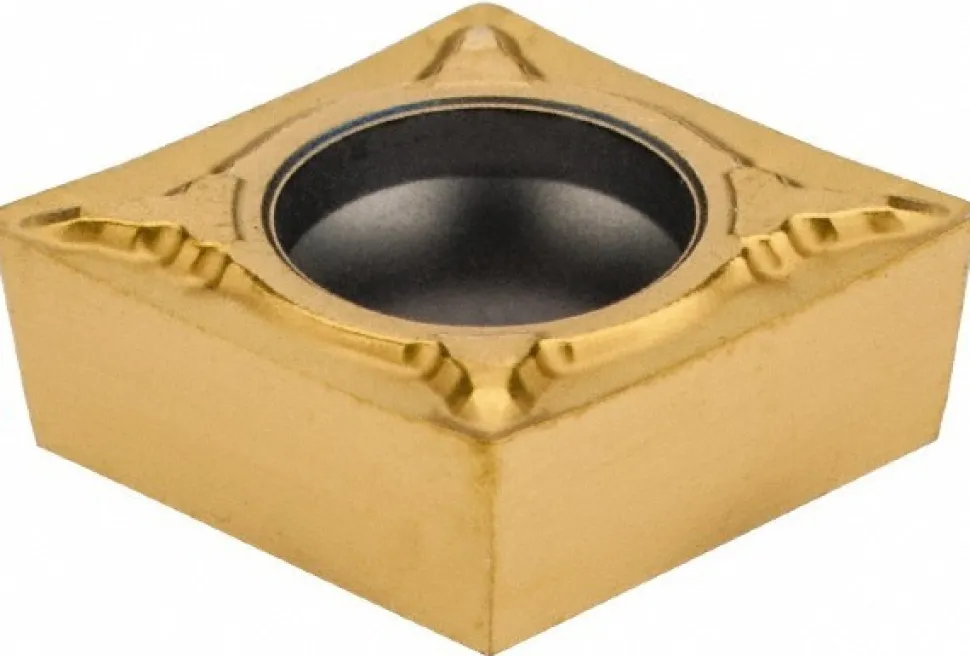

Turning Insert: CCMT32.51-F1 CP500, Carbide

Turning Insert: CCMT32.51-F1 CP500, Carbide

Original price was: 19,00 $.Current price is: 14,99 $.

SKU: SKURiokXn5w0y Categories: Indexable Cutting Tools, Indexable Inserts, Shop All Products Tag: Seco Brand: Seco

Description
Reviews (0)

Specifications

Insert Style: CCMT	ANSI Size Code: 32.51
ISO Size Code: 09T304	Insert Shape: C – Diamond (Rhombic) 80-Deg
Included Angle: 80.00	Inscribed Circle (Decimal Inch): 0.3750
Inscribed Circle (Inch): 3/8	Corner Radius (Inch): 1/64
Corner Radius (Decimal Inch): 0.0157	Insert Material: Carbide
Manufacturer Grade: CP500	Coating/Finish: TiN; TiAlN
Relief Angle: 7.000	Wiper Edge: No
Insert Thickness (Inch): 5/32	Insert Thickness (Decimal Inch): 0.1563
Insert Hand: Neutral	Series: CCMT-F1
Chip Breaker Operation: Finishing	Grade Characteristics: Cast Iron (K) – Moderate Wear-Resistance and Toughness to High Toughness; Steel (P) – Moderate Wear-Resistance and Toughness to High Toughness; Special, Super Alloys (S) – High Wear-Resistance to Moderate Wear-Resistance and Toughness
Side Clearance: Positive	Number Of Cutting Edges: 2
Hole Diameter (Decimal Inch): 0.1772	Maximum Depth of Cut (Decimal Inch): 0.3661
ANSI Insert Code: CCMT32.51	ISO Insert Code: CCMT09T304
Insert Holding Method: Screw	Width (Inch): 3/8
Clearance Code: C	Tolerance Code: M
Coating Process: PVD	Rake: Positive
Insert Length (Decimal Inch): 0.3819	Primary Workpiece Material: Stainless Steel
Primary Workpiece Material Code: P; S; K	Secondary Workpiece Material: Cast Iron; Superalloys & Titanium; Steel
Secondary Workpiece Material Code: P; S; K	Iso Code: CCMT09T304-F1
Standards: ISO; ANSI	Manufacturers Catalog Number: 00096857
Material Grade: M20; M30; M10	Proprietary Coating Designation: Multilayer Coating
Lead Angle: 80.000	Coating Classification: PVD
Chip Breaker: F1	Cutting Edge Style: Sharp
Industry Standard Number: CCMT32.51-F1	Width (Decimal Inch – 4 Decimals): 0.3750
Multi-Use Tool: Yes	Full Radius: No
Multi-Use Application: Facing; Turning; Boring	UNSPSC Code: 23242105
Country of Origin: Sweden
Insert Style: CCMT
ANSI Size Code: 32.51
ISO Size Code: 09T304
Insert Shape: C – Diamond (Rhombic) 80-Deg
Included Angle: 80.00
Inscribed Circle (Decimal Inch): 0.3750
Inscribed Circle (Inch): 3/8
Corner Radius (Inch): 1/64
Corner Radius (Decimal Inch): 0.0157
Insert Material: Carbide
Manufacturer Grade: CP500
Coating/Finish: TiN; TiAlN
Relief Angle: 7.000
Wiper Edge: No
Insert Thickness (Inch): 5/32
Insert Thickness (Decimal Inch): 0.1563
Insert Hand: Neutral
Series: CCMT-F1
Chip Breaker Operation: Finishing
Grade Characteristics: Cast Iron (K) – Moderate Wear-Resistance and Toughness to High Toughness; Steel (P) – Moderate Wear-Resistance and Toughness to High Toughness; Special, Super Alloys (S) – High Wear-Resistance to Moderate Wear-Resistance and Toughness
Side Clearance: Positive
Number Of Cutting Edges: 2
Hole Diameter (Decimal Inch): 0.1772
Maximum Depth of Cut (Decimal Inch): 0.3661
ANSI Insert Code: CCMT32.51
ISO Insert Code: CCMT09T304
Insert Holding Method: Screw
Width (Inch): 3/8
Clearance Code: C
Tolerance Code: M
Coating Process: PVD
Rake: Positive
Insert Length (Decimal Inch): 0.3819
Primary Workpiece Material: Stainless Steel
Primary Workpiece Material Code: P; S; K
Secondary Workpiece Material: Cast Iron; Superalloys & Titanium; Steel
Secondary Workpiece Material Code: P; S; K
Iso Code: CCMT09T304-F1
Standards: ISO; ANSI
Manufacturers Catalog Number: 00096857
Material Grade: M20; M30; M10
Proprietary Coating Designation: Multilayer Coating
Lead Angle: 80.000
Coating Classification: PVD
Chip Breaker: F1
Cutting Edge Style: Sharp
Industry Standard Number: CCMT32.51-F1
Width (Decimal Inch – 4 Decimals): 0.3750
Multi-Use Tool: Yes
Full Radius: No
Multi-Use Application: Facing; Turning; Boring
UNSPSC Code: 23242105
Country of Origin: Sweden
