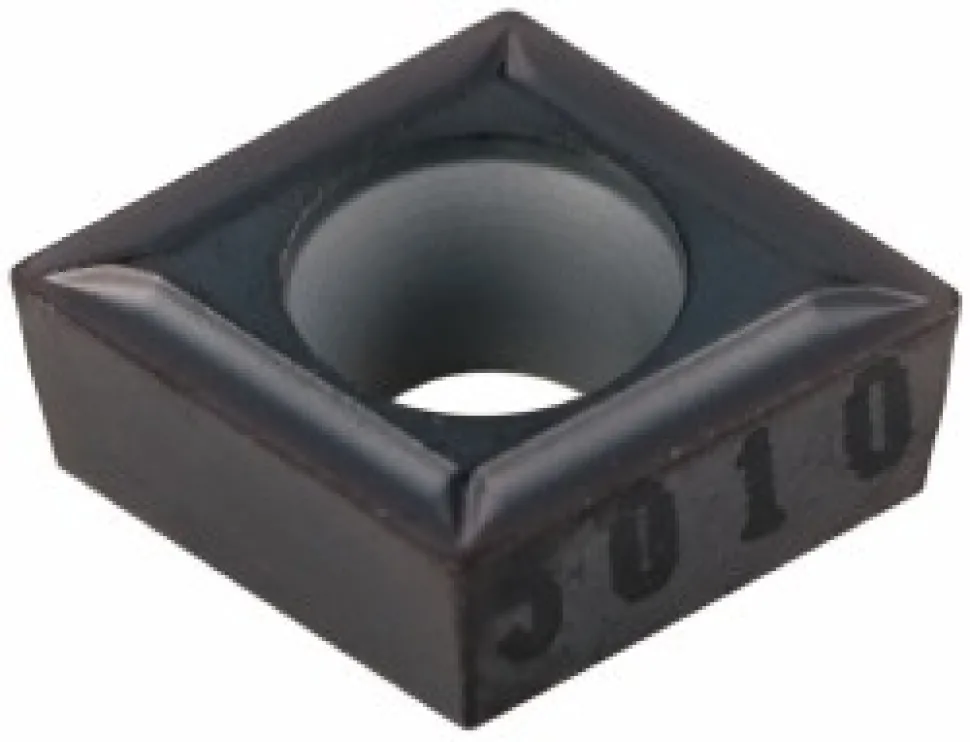

Turning Insert: CCMT3251LF KC5010, Carbide

25,99 $

SKU: SKUQow8zb2WW6 Categories: Indexable Cutting Tools, Indexable Inserts, Shop All Products Tag: Kennametal Brand: Kennametal

Description
Reviews (0)

Specifications

Insert Style: CCMT	ANSI Size Code: 32.51
ISO Size Code: 09T304	Insert Shape: C – Diamond (Rhombic) 80-Deg
Included Angle: 80.00	Inscribed Circle (Decimal Inch): 0.3750
Inscribed Circle (Inch): 3/8	Corner Radius (Inch): 1/64
Corner Radius (Decimal Inch): 0.0156	Insert Material: Carbide
Manufacturer Grade: KC5010	Coating/Finish: TiAlN
Relief Angle: 7.000	Wiper Edge: No
Insert Thickness (Inch): 5/32	Insert Thickness (Decimal Inch): 0.1563
Insert Hand: Neutral	Series: Screw-On
Chip Breaker Operation: Light Machining; Finishing	Grade Characteristics: Cast Iron (K) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Steel (P) – High Wear-Resistance to Moderate Wear-Resistance and Toughness
Side Clearance: Positive	Number Of Cutting Edges: 2
Hole Diameter (Decimal Inch): 0.1732	Hole Diameter (mm): 4.40
Maximum Depth of Cut (mm): 1.25	Maximum Depth of Cut (Decimal Inch): 0.0492
ANSI Insert Code: CCMT32.51	ISO Insert Code: CCMT09T304
Insert Holding Method: Screw	Width (Inch): 3/8
Clearance Code: C	Tolerance Code: M
Coating Process: PVD	Rake: Positive
Insert Length (Decimal Inch): 0.3808	Insert Length (mm): 9.67
Primary Workpiece Material: Stainless Steel; Superalloys & Titanium; Steel	Primary Workpiece Material Code: P; S; K; M; N
Secondary Workpiece Material Code: P; S; N	Standards: ISO; ANSI
Manufacturers Catalog Number: 1845227	Material Grade: C3; C4
Coating Classification: PVD	Chip Breaker: LF
Rake Angle: 5	Cutting Edge Style: Honed
Industry Standard Number: CCMT3251LF	Width (Decimal Inch – 4 Decimals): 0.3750
Multi-Use Tool: Yes	Full Radius: No
Multi-Use Application: Facing; Turning; Boring	UNSPSC Code: 23242105
Insert Style: CCMT
ANSI Size Code: 32.51
ISO Size Code: 09T304
Insert Shape: C – Diamond (Rhombic) 80-Deg
Included Angle: 80.00
Inscribed Circle (Decimal Inch): 0.3750
Inscribed Circle (Inch): 3/8
Corner Radius (Inch): 1/64
Corner Radius (Decimal Inch): 0.0156
Insert Material: Carbide
Manufacturer Grade: KC5010
Coating/Finish: TiAlN
Relief Angle: 7.000
Wiper Edge: No
Insert Thickness (Inch): 5/32
Insert Thickness (Decimal Inch): 0.1563
Insert Hand: Neutral
Series: Screw-On
Chip Breaker Operation: Light Machining; Finishing
Grade Characteristics: Cast Iron (K) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Steel (P) – High Wear-Resistance to Moderate Wear-Resistance and Toughness
Side Clearance: Positive
Number Of Cutting Edges: 2
Hole Diameter (Decimal Inch): 0.1732
Hole Diameter (mm): 4.40
Maximum Depth of Cut (mm): 1.25
Maximum Depth of Cut (Decimal Inch): 0.0492
ANSI Insert Code: CCMT32.51
ISO Insert Code: CCMT09T304
Insert Holding Method: Screw
Width (Inch): 3/8
Clearance Code: C
Tolerance Code: M
Coating Process: PVD
Rake: Positive
Insert Length (Decimal Inch): 0.3808
Insert Length (mm): 9.67
Primary Workpiece Material: Stainless Steel; Superalloys & Titanium; Steel
Primary Workpiece Material Code: P; S; K; M; N
Secondary Workpiece Material Code: P; S; N
Standards: ISO; ANSI
Manufacturers Catalog Number: 1845227
Material Grade: C3; C4
Coating Classification: PVD
Chip Breaker: LF
Rake Angle: 5
Cutting Edge Style: Honed
Industry Standard Number: CCMT3251LF
Width (Decimal Inch – 4 Decimals): 0.3750
Multi-Use Tool: Yes
Full Radius: No
Multi-Use Application: Facing; Turning; Boring
UNSPSC Code: 23242105
