Sale!

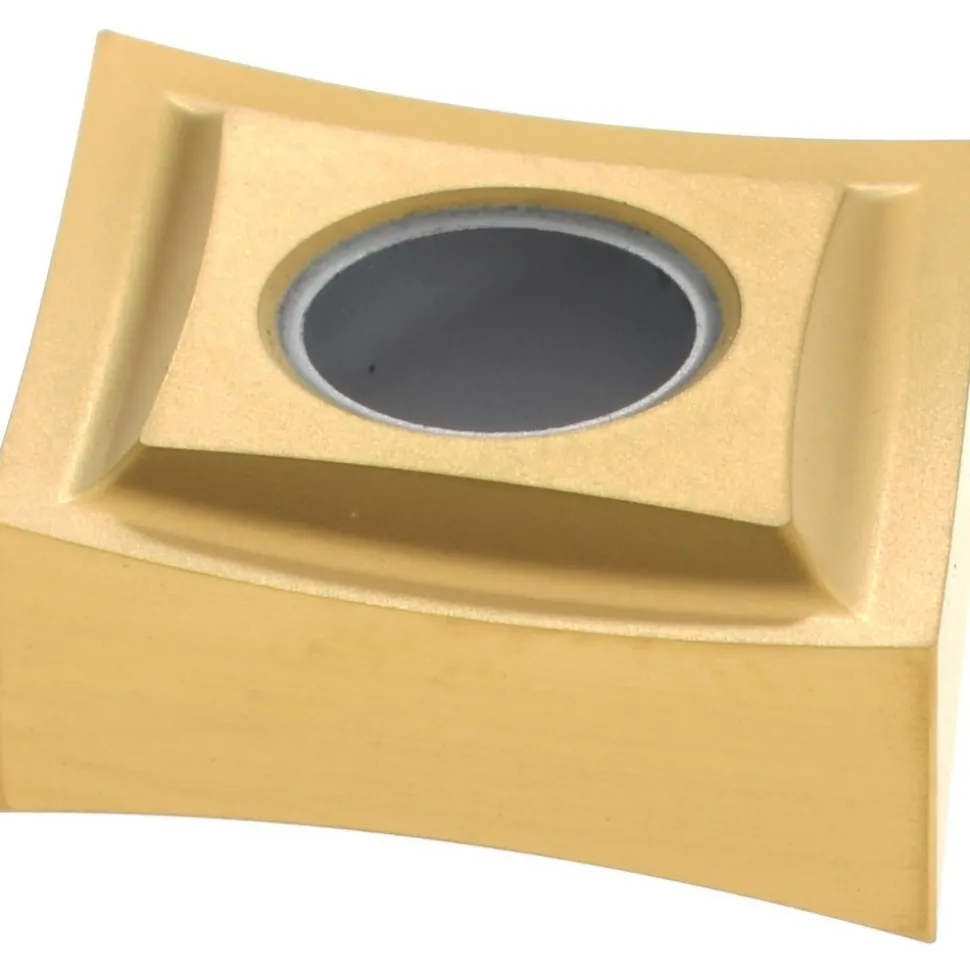

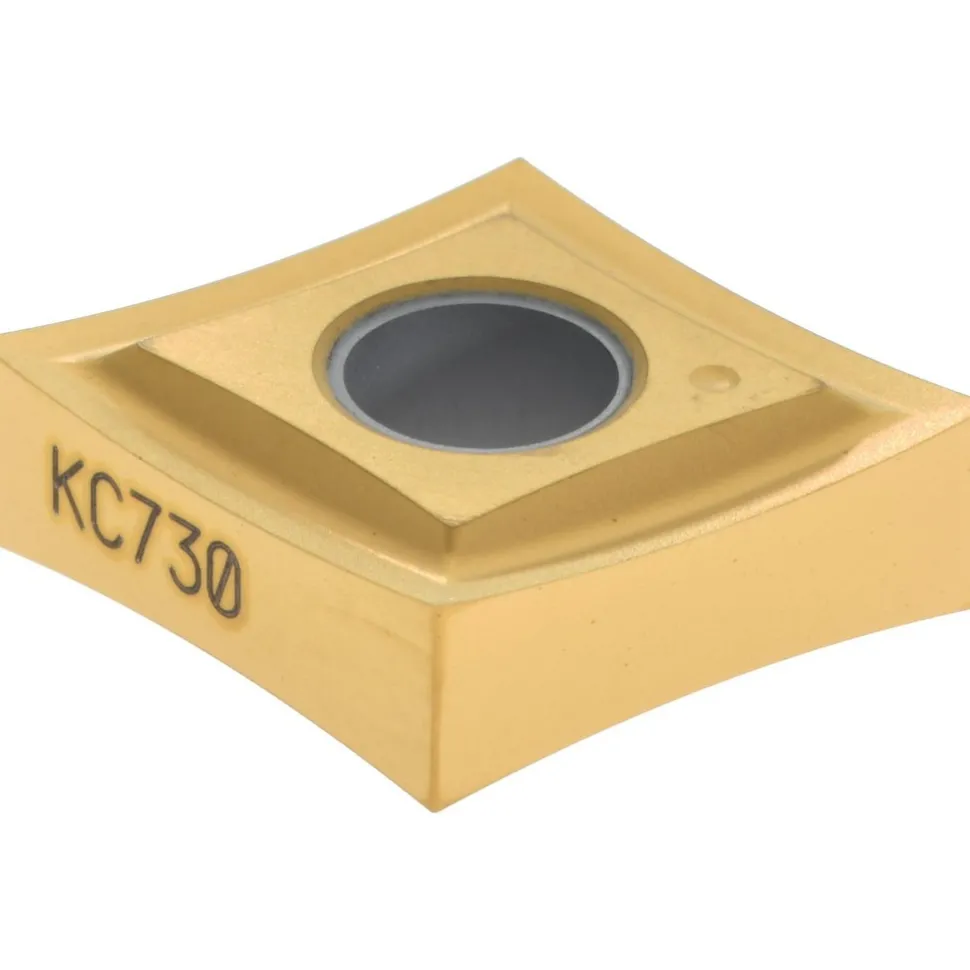

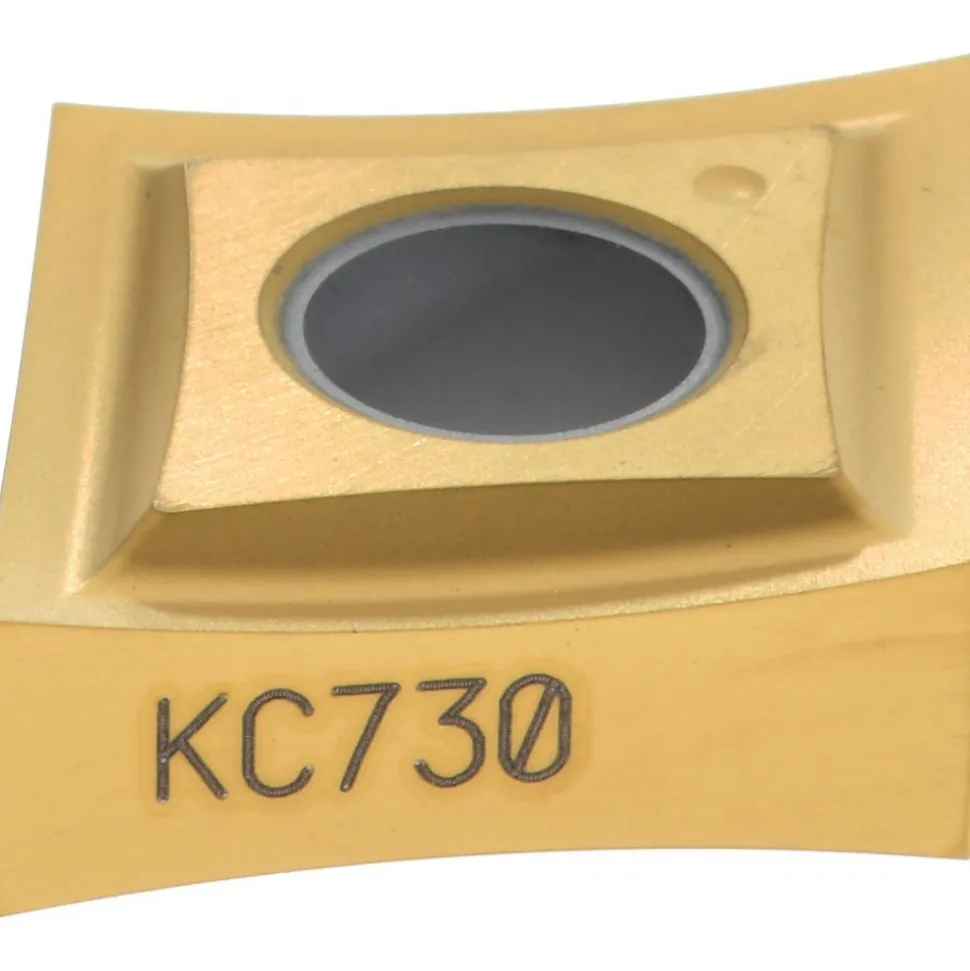

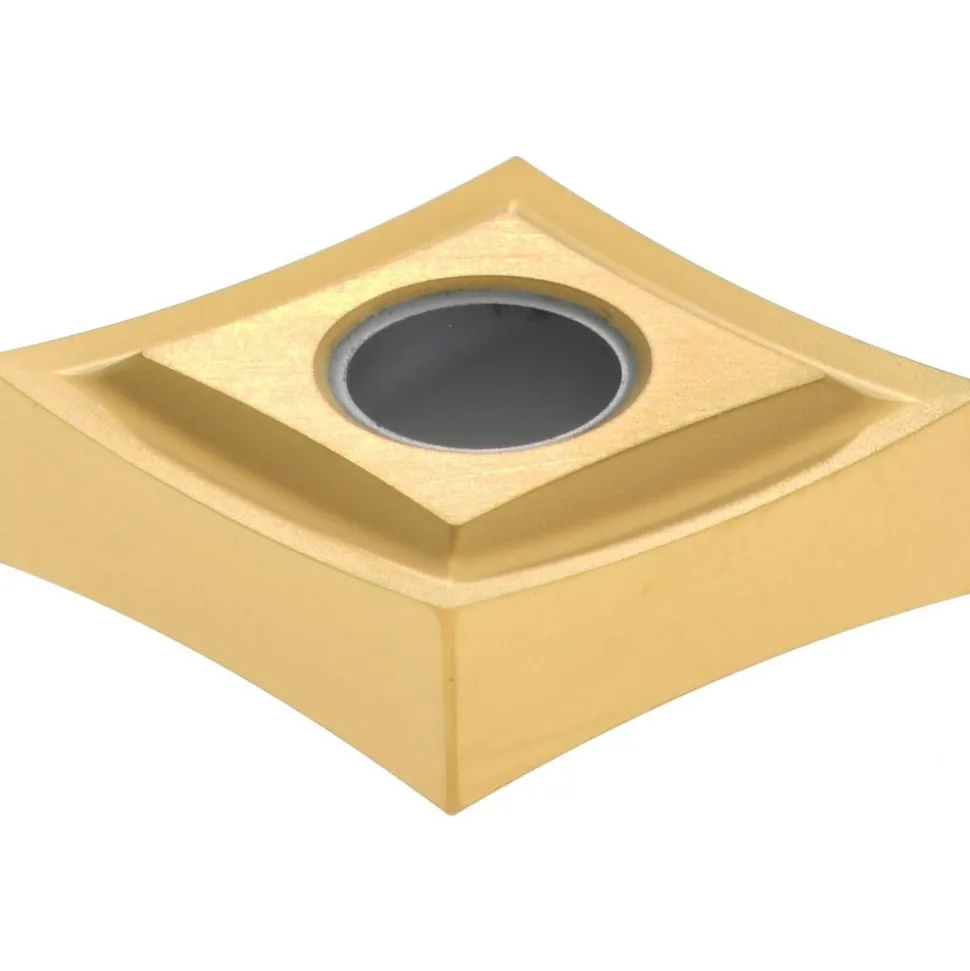

Turning Insert: CNGP430 KC730, Carbide

Original price was: 37,00 $.Current price is: 27,99 $.

SKU: SKU3kNHivuiSf Categories: Indexable Cutting Tools, Indexable Inserts, Shop All Products Tag: Kennametal Brand: Kennametal

Description
Reviews (0)

Specifications

Insert Style: CNGP	ANSI Size Code: 430.2
ISO Size Code: 120401	Insert Shape: C – Diamond (Rhombic) 80-Deg
Included Angle: 80.00	Inscribed Circle (Decimal Inch): 0.5000
Inscribed Circle (Inch): 1/2	Corner Radius (Decimal Inch): 0.0039
Insert Material: Carbide	Manufacturer Grade: KC730
Coating/Finish: TiN	Relief Angle: 0.000
Wiper Edge: No	Insert Thickness (Inch): 3/16
Insert Thickness (Decimal Inch): 0.1875	Insert Hand: Neutral
Series: KENLOC	Chip Breaker Operation: Medium Machining
Grade Characteristics: Cast Iron (K) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Steel (P) – High Wear-Resistance to Moderate Wear-Resistance and Toughness	Side Clearance: Negative
Number Of Cutting Edges: 4	Hole Diameter (Decimal Inch): 0.2031
Hole Diameter (mm): 5.20	Maximum Depth of Cut (mm): 1.25
Maximum Depth of Cut (Decimal Inch): 0.0492	ANSI Insert Code: CNGP430.2
ISO Insert Code: CNGP120401	Insert Holding Method: Pin; Clamp
Width (Inch): 1/2	Clearance Code: N
Tolerance Code: G	Coating Process: PVD
Rake: Negative	Insert Length (Decimal Inch): 0.5077
Insert Length (mm): 12.90	Primary Workpiece Material: Stainless Steel; Superalloys & Titanium; Steel
Primary Workpiece Material Code: P; K; M	Secondary Workpiece Material Code: S; M
Standards: ISO; ANSI	Manufacturers Catalog Number: 1160897
Material Grade: C3; C4; C2	Proprietary Coating Designation: TiN
Coating Classification: PVD	Chip Breaker: Common
Rake Angle: 10	Cutting Edge Style: Honed
Industry Standard Number: CNGP4302	Width (Decimal Inch – 4 Decimals): 0.5000
Multi-Use Tool: Yes	Full Radius: No
Multi-Use Application: Facing; Turning; Boring	UNSPSC Code: 23242105
Country of Origin: UNITED STATES
Insert Style: CNGP
ANSI Size Code: 430.2
ISO Size Code: 120401
Insert Shape: C – Diamond (Rhombic) 80-Deg
Included Angle: 80.00
Inscribed Circle (Decimal Inch): 0.5000
Inscribed Circle (Inch): 1/2
Corner Radius (Decimal Inch): 0.0039
Insert Material: Carbide
Manufacturer Grade: KC730
Coating/Finish: TiN
Relief Angle: 0.000
Wiper Edge: No
Insert Thickness (Inch): 3/16
Insert Thickness (Decimal Inch): 0.1875
Insert Hand: Neutral
Series: KENLOC
Chip Breaker Operation: Medium Machining
Grade Characteristics: Cast Iron (K) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Steel (P) – High Wear-Resistance to Moderate Wear-Resistance and Toughness
Side Clearance: Negative
Number Of Cutting Edges: 4
Hole Diameter (Decimal Inch): 0.2031
Hole Diameter (mm): 5.20
Maximum Depth of Cut (mm): 1.25
Maximum Depth of Cut (Decimal Inch): 0.0492
ANSI Insert Code: CNGP430.2
ISO Insert Code: CNGP120401
Insert Holding Method: Pin; Clamp
Width (Inch): 1/2
Clearance Code: N
Tolerance Code: G
Coating Process: PVD
Rake: Negative
Insert Length (Decimal Inch): 0.5077
Insert Length (mm): 12.90
Primary Workpiece Material: Stainless Steel; Superalloys & Titanium; Steel
Primary Workpiece Material Code: P; K; M
Secondary Workpiece Material Code: S; M
Standards: ISO; ANSI
Manufacturers Catalog Number: 1160897
Material Grade: C3; C4; C2
Proprietary Coating Designation: TiN
Coating Classification: PVD
Chip Breaker: Common
Rake Angle: 10
Cutting Edge Style: Honed
Industry Standard Number: CNGP4302
Width (Decimal Inch – 4 Decimals): 0.5000
Multi-Use Tool: Yes
Full Radius: No
Multi-Use Application: Facing; Turning; Boring
UNSPSC Code: 23242105
Country of Origin: UNITED STATES
