Sale!

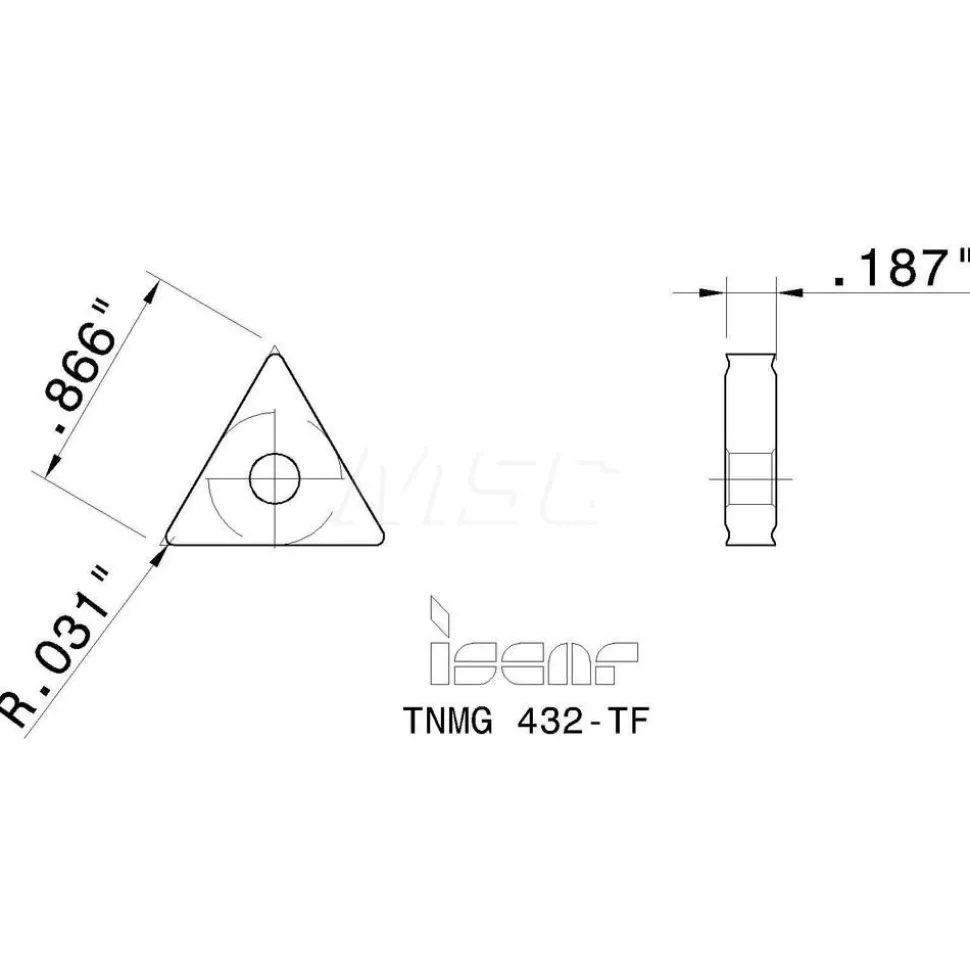

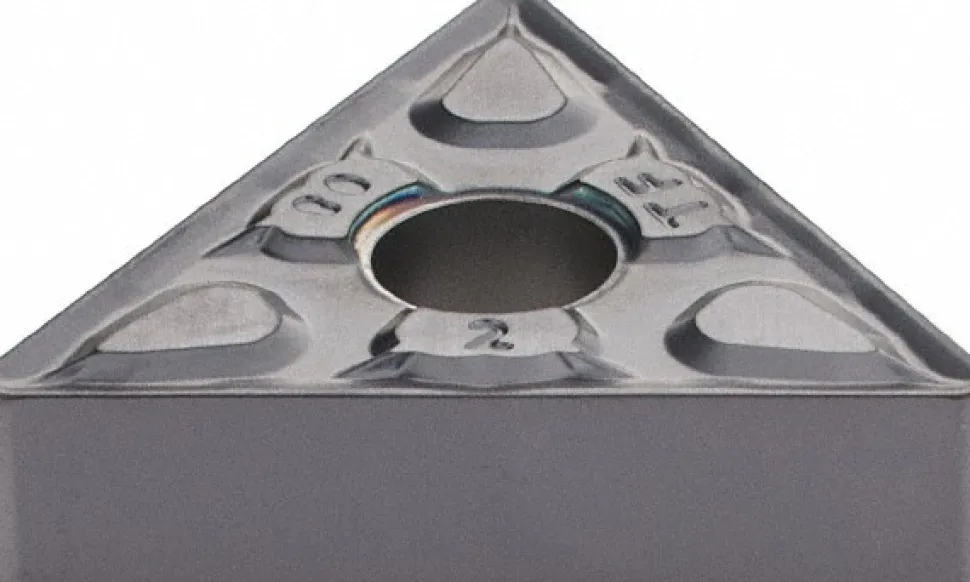

Turning Insert: TNMG432TF IC907, Carbide
Original price was: 24,00 $.17,99 $Current price is: 17,99 $.
Specifications
| Insert Style: TNMG | ANSI Size Code: 432 |
| ISO Size Code: 220408 | Insert Shape: T – Triangle |
| Included Angle: 60.00 | Inscribed Circle (Decimal Inch): 0.5000 |
| Inscribed Circle (Inch): 1/2 | Inscribed Circle (mm): 12.70 |
| Corner Radius (Inch): 1/32 | Corner Radius (Decimal Inch): 0.0310 |
| Insert Material: Carbide | Manufacturer Grade: IC907 |
| Coating/Finish: TiN; TiAlN | Relief Angle: 0.000 |
| Insert Thickness (Inch): 3/16 | Insert Thickness (Decimal Inch): 0.1870 |
| Series: Isoturn | Chip Breaker Operation: Medium Machining; Roughing |
| Grade Characteristics: Cast Iron (K) – High Wear-Resistance; Aluminum & Non-Ferrous (N) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Steel (P) – High Wear-Resistance to Moderate Wear-Resistance and Toughness | Side Clearance: Negative |
| Hole Diameter (Decimal Inch): 0.2030 | Maximum Depth of Cut (Decimal Inch): 0.1570 |
| ANSI Insert Code: TNMG432 | ISO Insert Code: TNMG220408 |
| Insert Holding Method: Pin; Clamp | Clearance Code: N |
| Tolerance Code: M | Coating Process: PVD |
| Rake: Positive | Insert Length (Decimal Inch): 0.8660 |
| Primary Workpiece Material Code: P; S; K; M; N | Iso Code: ISO 13399 |
| Standards: ISO 13399 | Material Grade: C7; C8 |
| Chip Breaker: TF | UNSPSC Code: 23242105 |
| Country of Origin: Israel | |
| Insert Style: TNMG | |
| ANSI Size Code: 432 | |
| ISO Size Code: 220408 | |
| Insert Shape: T – Triangle | |
| Included Angle: 60.00 | |
| Inscribed Circle (Decimal Inch): 0.5000 | |
| Inscribed Circle (Inch): 1/2 | |
| Inscribed Circle (mm): 12.70 | |
| Corner Radius (Inch): 1/32 | |
| Corner Radius (Decimal Inch): 0.0310 | |
| Insert Material: Carbide | |
| Manufacturer Grade: IC907 | |
| Coating/Finish: TiN; TiAlN | |
| Relief Angle: 0.000 | |
| Insert Thickness (Inch): 3/16 | |
| Insert Thickness (Decimal Inch): 0.1870 | |
| Series: Isoturn | |
| Chip Breaker Operation: Medium Machining; Roughing | |
| Grade Characteristics: Cast Iron (K) – High Wear-Resistance; Aluminum & Non-Ferrous (N) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Steel (P) – High Wear-Resistance to Moderate Wear-Resistance and Toughness | |
| Side Clearance: Negative | |
| Hole Diameter (Decimal Inch): 0.2030 | |
| Maximum Depth of Cut (Decimal Inch): 0.1570 | |
| ANSI Insert Code: TNMG432 | |
| ISO Insert Code: TNMG220408 | |
| Insert Holding Method: Pin; Clamp | |
| Clearance Code: N | |
| Tolerance Code: M | |
| Coating Process: PVD | |
| Rake: Positive | |
| Insert Length (Decimal Inch): 0.8660 | |
| Primary Workpiece Material Code: P; S; K; M; N | |
| Iso Code: ISO 13399 | |
| Standards: ISO 13399 | |
| Material Grade: C7; C8 | |
| Chip Breaker: TF | |
| UNSPSC Code: 23242105 | |
| Country of Origin: Israel |
| MSC# | 85108975 |
| Mfr# | 5505127 |
| Big Book# | 794 |
