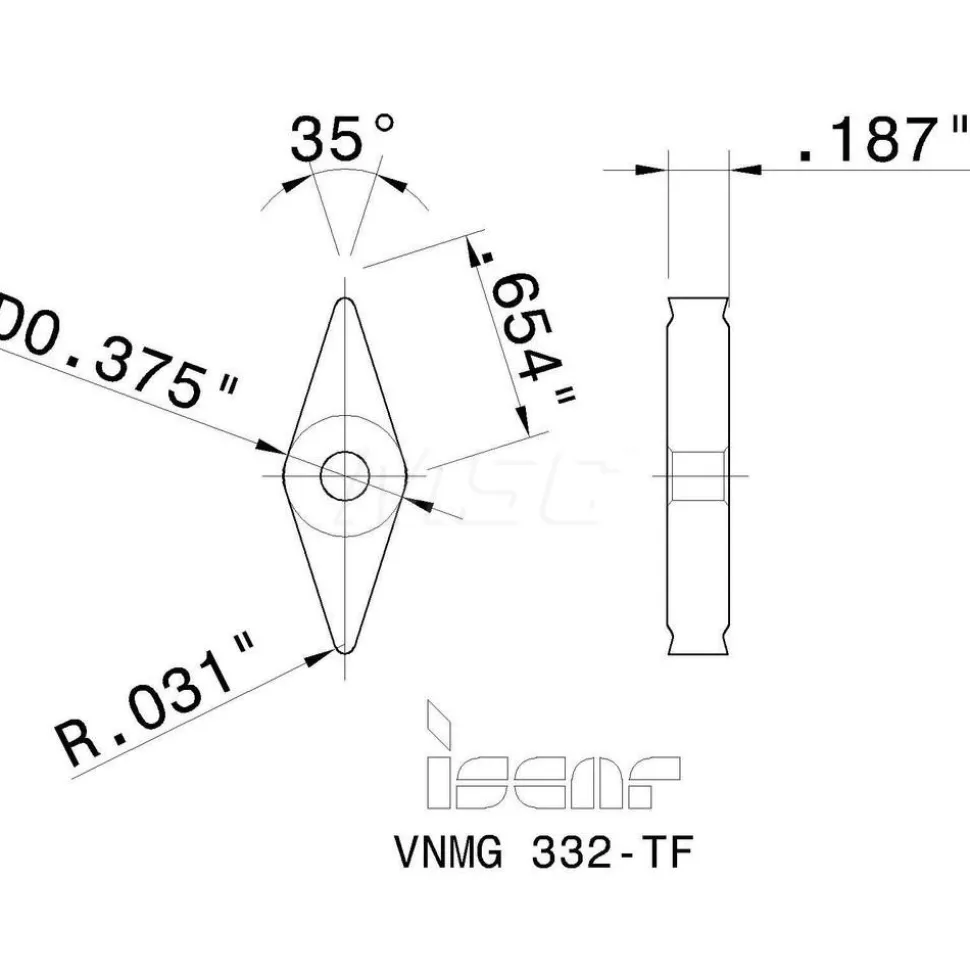

Turning Insert: VNMG 332-TF IC-907, Carbide
24,99 $
Specifications
| Insert Style: VNMG | ANSI Size Code: 332 |
| ISO Size Code: 160408 | Insert Shape: V – Diamond (Rhombic) 35-Deg |
| Included Angle: 35.00 | Inscribed Circle (Decimal Inch): 0.3748 |
| Inscribed Circle (Inch): 3/8 | Corner Radius (Inch): 1/32 |
| Corner Radius (mm): 0.03 | Corner Radius (Decimal Inch): 0.0315 |
| Insert Material: Carbide | Manufacturer Grade: IC907 |
| Coating/Finish: TiAlN | Relief Angle: 0.000 |
| Insert Thickness (Inch): 3/16 | Insert Thickness (Decimal Inch): 0.1874 |
| Series: Isoturn | Chip Breaker Operation: Medium Machining; Roughing |
| Grade Characteristics: Cast Iron (K) – High Wear-Resistance; Aluminum & Non-Ferrous (N) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Steel (P) – High Wear-Resistance to Moderate Wear-Resistance and Toughness | Side Clearance: Negative |
| Hole Diameter (Decimal Inch): 0.1500 | Maximum Depth of Cut (Decimal Inch): 0.1380 |
| ANSI Insert Code: VNMG332 | ISO Insert Code: VNMG160408 |
| Insert Holding Method: Pin; Clamp | Clearance Code: N |
| Tolerance Code: M | Coating Process: PVD |
| Rake: Positive | Insert Length (Decimal Inch): 0.6535 |
| Insert Length (mm): 16.60 | Primary Workpiece Material Code: P; S; K; M; N |
| Iso Code: ISO 13399 | Standards: ISO 13399 |
| Material Grade: C7; C8 | Chip Breaker: TF |
| UNSPSC Code: 23242105 | Country of Origin: Israel |
| Insert Style: VNMG | |
| ANSI Size Code: 332 | |
| ISO Size Code: 160408 | |
| Insert Shape: V – Diamond (Rhombic) 35-Deg | |
| Included Angle: 35.00 | |
| Inscribed Circle (Decimal Inch): 0.3748 | |
| Inscribed Circle (Inch): 3/8 | |
| Corner Radius (Inch): 1/32 | |
| Corner Radius (mm): 0.03 | |
| Corner Radius (Decimal Inch): 0.0315 | |
| Insert Material: Carbide | |
| Manufacturer Grade: IC907 | |
| Coating/Finish: TiAlN | |
| Relief Angle: 0.000 | |
| Insert Thickness (Inch): 3/16 | |
| Insert Thickness (Decimal Inch): 0.1874 | |
| Series: Isoturn | |
| Chip Breaker Operation: Medium Machining; Roughing | |
| Grade Characteristics: Cast Iron (K) – High Wear-Resistance; Aluminum & Non-Ferrous (N) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Steel (P) – High Wear-Resistance to Moderate Wear-Resistance and Toughness | |
| Side Clearance: Negative | |
| Hole Diameter (Decimal Inch): 0.1500 | |
| Maximum Depth of Cut (Decimal Inch): 0.1380 | |
| ANSI Insert Code: VNMG332 | |
| ISO Insert Code: VNMG160408 | |
| Insert Holding Method: Pin; Clamp | |
| Clearance Code: N | |
| Tolerance Code: M | |
| Coating Process: PVD | |
| Rake: Positive | |
| Insert Length (Decimal Inch): 0.6535 | |
| Insert Length (mm): 16.60 | |
| Primary Workpiece Material Code: P; S; K; M; N | |
| Iso Code: ISO 13399 | |
| Standards: ISO 13399 | |
| Material Grade: C7; C8 | |
| Chip Breaker: TF | |
| UNSPSC Code: 23242105 | |
| Country of Origin: Israel |
| MSC# | 60796265 |
| Mfr# | 5505130 |
| Big Book# | 806 |
