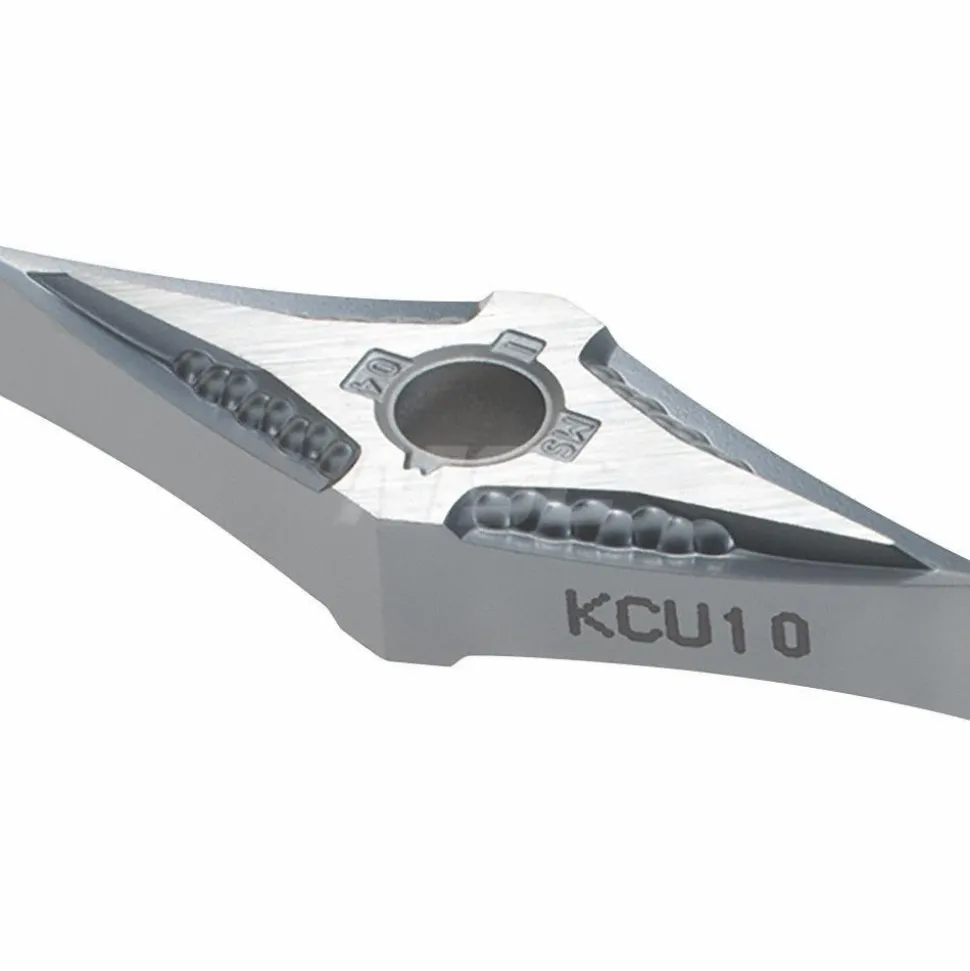

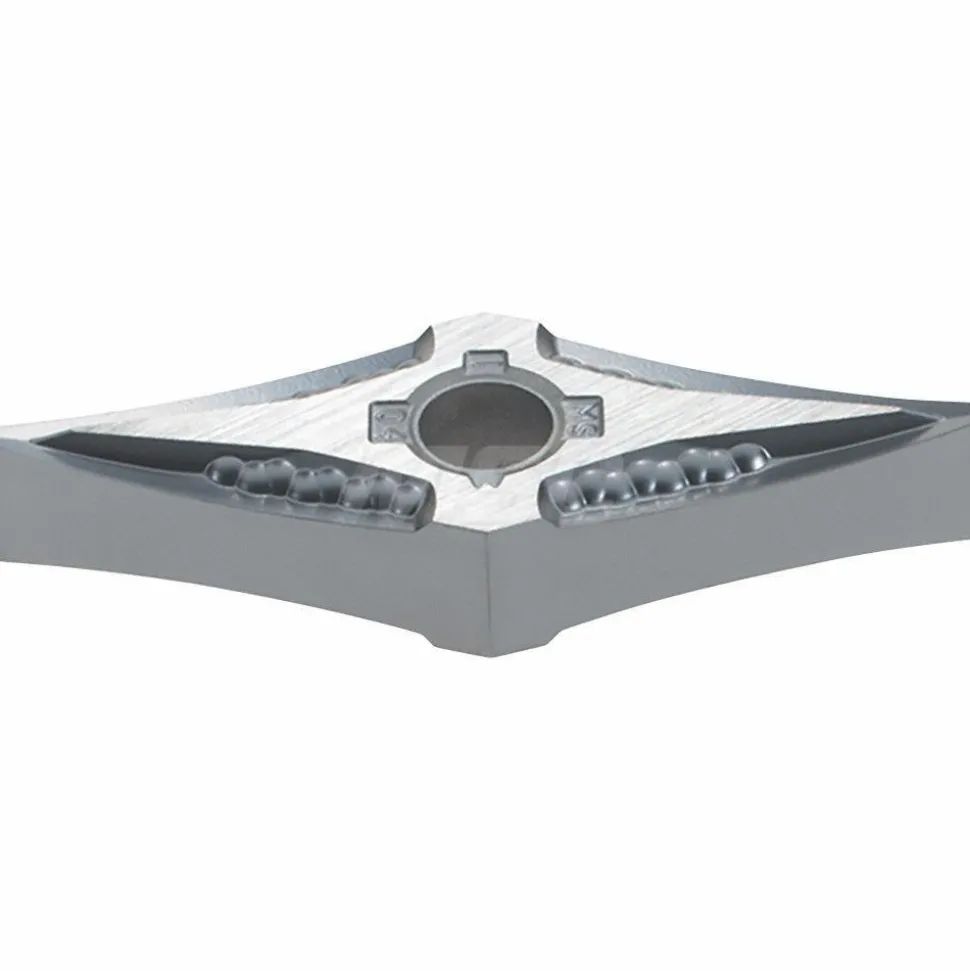

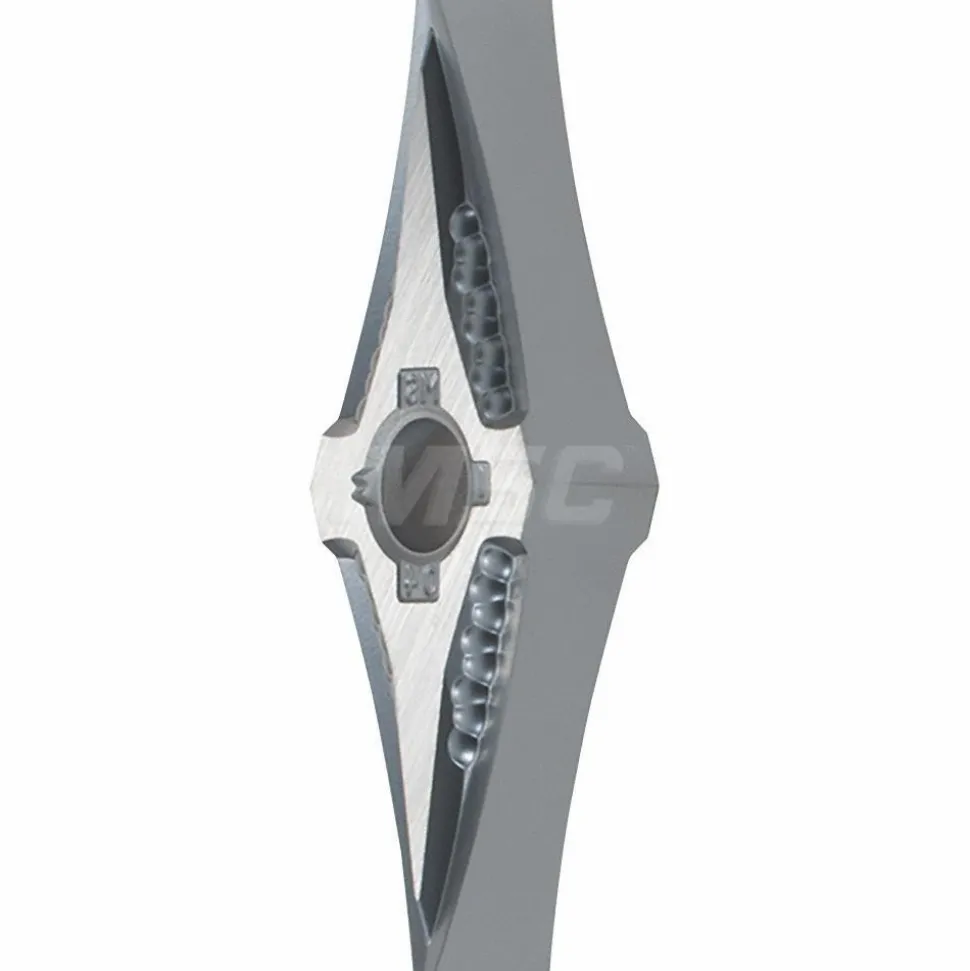

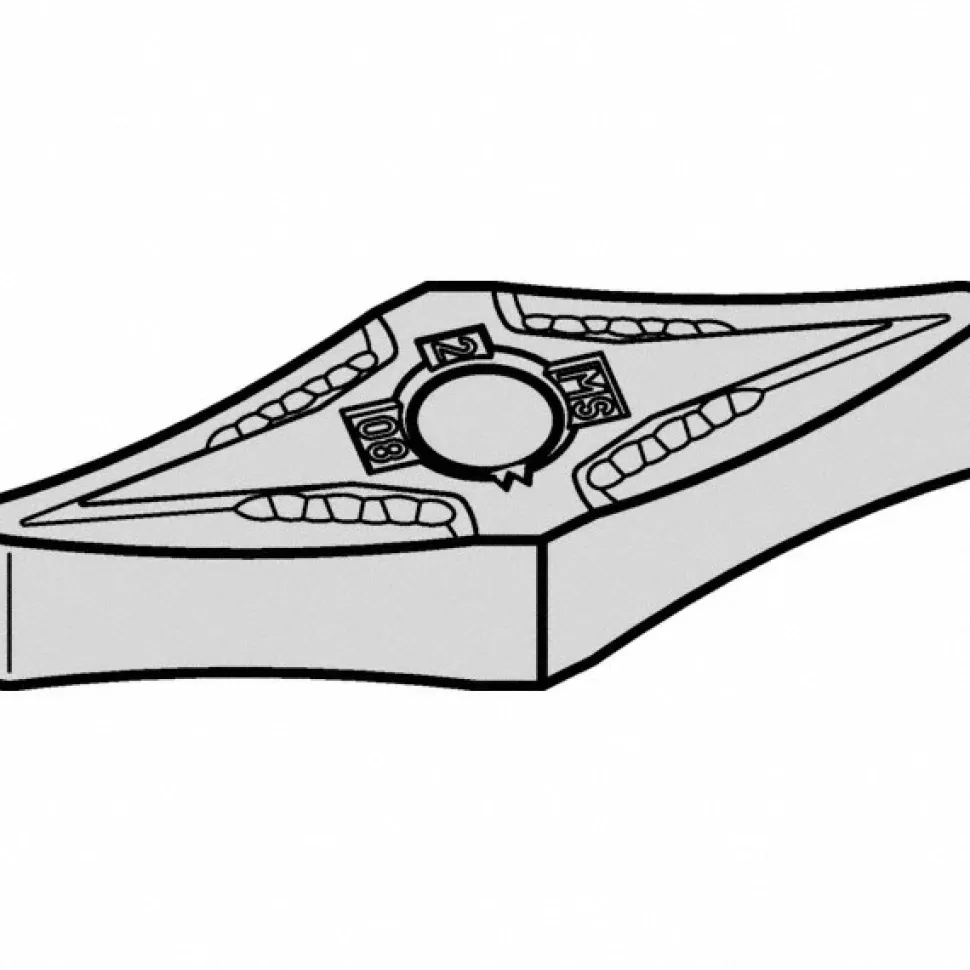

Turning Insert: VNMG331MS KCU10, Carbide
Original price was: 35,00 $.25,89 $Current price is: 25,89 $.
Specifications
| Insert Style: VNMG | ANSI Size Code: 331 |
| ISO Size Code: 160404 | Insert Shape: V – Diamond (Rhombic) 35-Deg |
| Included Angle: 35.00 | Inscribed Circle (Decimal Inch): 0.3750 |
| Inscribed Circle (Inch): 3/8 | Corner Radius (Inch): 1/64 |
| Corner Radius (Decimal Inch): 0.0156 | Insert Material: Carbide |
| Manufacturer Grade: KCU10 | Coating/Finish: TiAlN |
| Relief Angle: 0.000 | Wiper Edge: No |
| Insert Thickness (Inch): 3/16 | Insert Thickness (Decimal Inch): 0.1875 |
| Insert Hand: Neutral | Series: KENLOC |
| Chip Breaker Operation: Medium Machining; Roughing | Grade Characteristics: Cast Iron (K) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Hardened Materials (H) – High Wear-Resistance; Stainless Steel (M) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Steel (P) – High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Side Clearance: Negative | Number Of Cutting Edges: 4 |
| Hole Diameter (Decimal Inch): 0.1500 | Maximum Depth of Cut (Decimal Inch): 0.4354 |
| ANSI Insert Code: VNMG331 | ISO Insert Code: VNMG160404 |
| Insert Holding Method: Pin; Clamp | Width (Inch): 3/8 |
| Clearance Code: N | Tolerance Code: M |
| Coating Process: PVD | Rake: Negative |
| Insert Length (Decimal Inch): 1.3076 | Primary Workpiece Material: Stainless Steel; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code: P; S; H; K; M; N | Standards: ISO; ANSI |
| Manufacturers Catalog Number: 5090853 | Material Grade: C3; C4 |
| Coating Classification: PVD | Chip Breaker: MS |
| Rake Angle: 13 | Cutting Edge Style: Honed |
| Industry Standard Number: VNMG331MS | Width (Decimal Inch – 4 Decimals): 0.3750 |
| Multi-Use Tool: Yes | Full Radius: No |
| Multi-Use Application: Back Boring; Facing; Turning; Back Turning; Boring | UNSPSC Code: 23242105 |
| Country of Origin: UNITED STATES | |
| Insert Style: VNMG | |
| ANSI Size Code: 331 | |
| ISO Size Code: 160404 | |
| Insert Shape: V – Diamond (Rhombic) 35-Deg | |
| Included Angle: 35.00 | |
| Inscribed Circle (Decimal Inch): 0.3750 | |
| Inscribed Circle (Inch): 3/8 | |
| Corner Radius (Inch): 1/64 | |
| Corner Radius (Decimal Inch): 0.0156 | |
| Insert Material: Carbide | |
| Manufacturer Grade: KCU10 | |
| Coating/Finish: TiAlN | |
| Relief Angle: 0.000 | |
| Wiper Edge: No | |
| Insert Thickness (Inch): 3/16 | |
| Insert Thickness (Decimal Inch): 0.1875 | |
| Insert Hand: Neutral | |
| Series: KENLOC | |
| Chip Breaker Operation: Medium Machining; Roughing | |
| Grade Characteristics: Cast Iron (K) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Hardened Materials (H) – High Wear-Resistance; Stainless Steel (M) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Steel (P) – High Wear-Resistance to Moderate Wear-Resistance and Toughness | |
| Side Clearance: Negative | |
| Number Of Cutting Edges: 4 | |
| Hole Diameter (Decimal Inch): 0.1500 | |
| Maximum Depth of Cut (Decimal Inch): 0.4354 | |
| ANSI Insert Code: VNMG331 | |
| ISO Insert Code: VNMG160404 | |
| Insert Holding Method: Pin; Clamp | |
| Width (Inch): 3/8 | |
| Clearance Code: N | |
| Tolerance Code: M | |
| Coating Process: PVD | |
| Rake: Negative | |
| Insert Length (Decimal Inch): 1.3076 | |
| Primary Workpiece Material: Stainless Steel; Superalloys & Titanium; Steel | |
| Primary Workpiece Material Code: P; S; H; K; M; N | |
| Standards: ISO; ANSI | |
| Manufacturers Catalog Number: 5090853 | |
| Material Grade: C3; C4 | |
| Coating Classification: PVD | |
| Chip Breaker: MS | |
| Rake Angle: 13 | |
| Cutting Edge Style: Honed | |
| Industry Standard Number: VNMG331MS | |
| Width (Decimal Inch – 4 Decimals): 0.3750 | |
| Multi-Use Tool: Yes | |
| Full Radius: No | |
| Multi-Use Application: Back Boring; Facing; Turning; Back Turning; Boring | |
| UNSPSC Code: 23242105 | |
| Country of Origin: UNITED STATES |
| MSC# | 70427307 |
| Mfr# | 5090853 |
