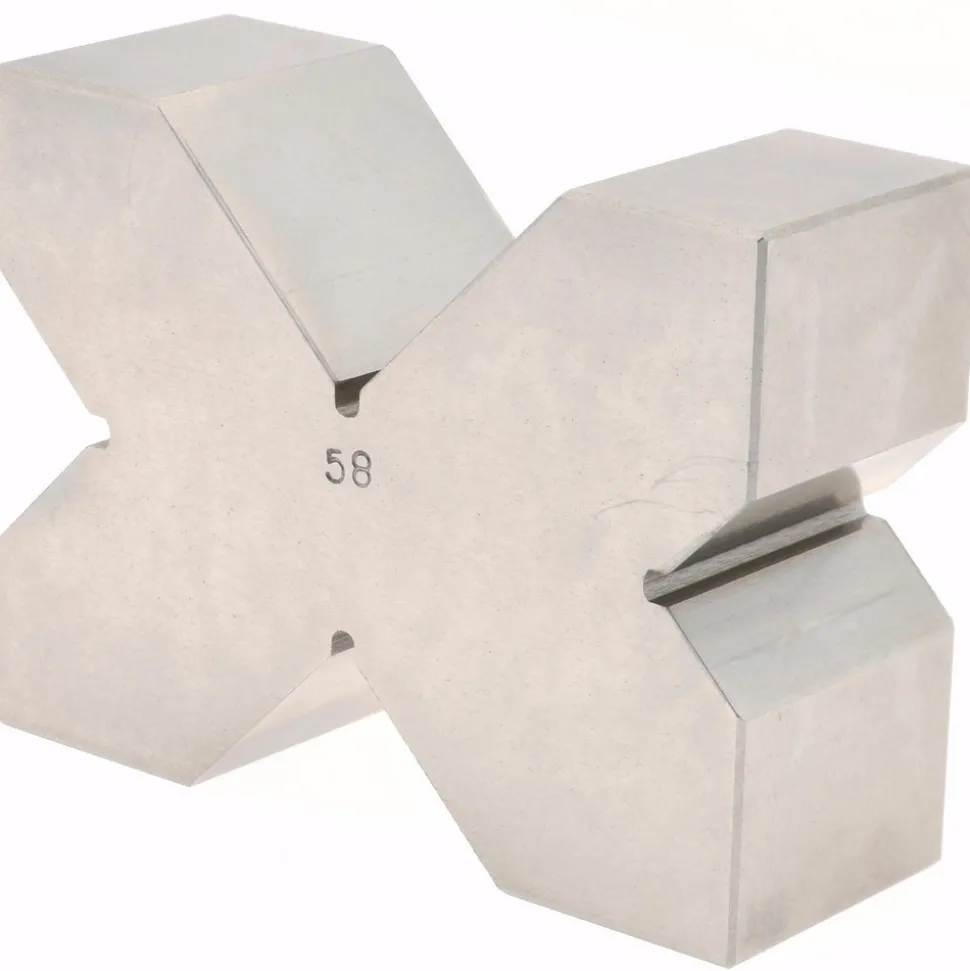

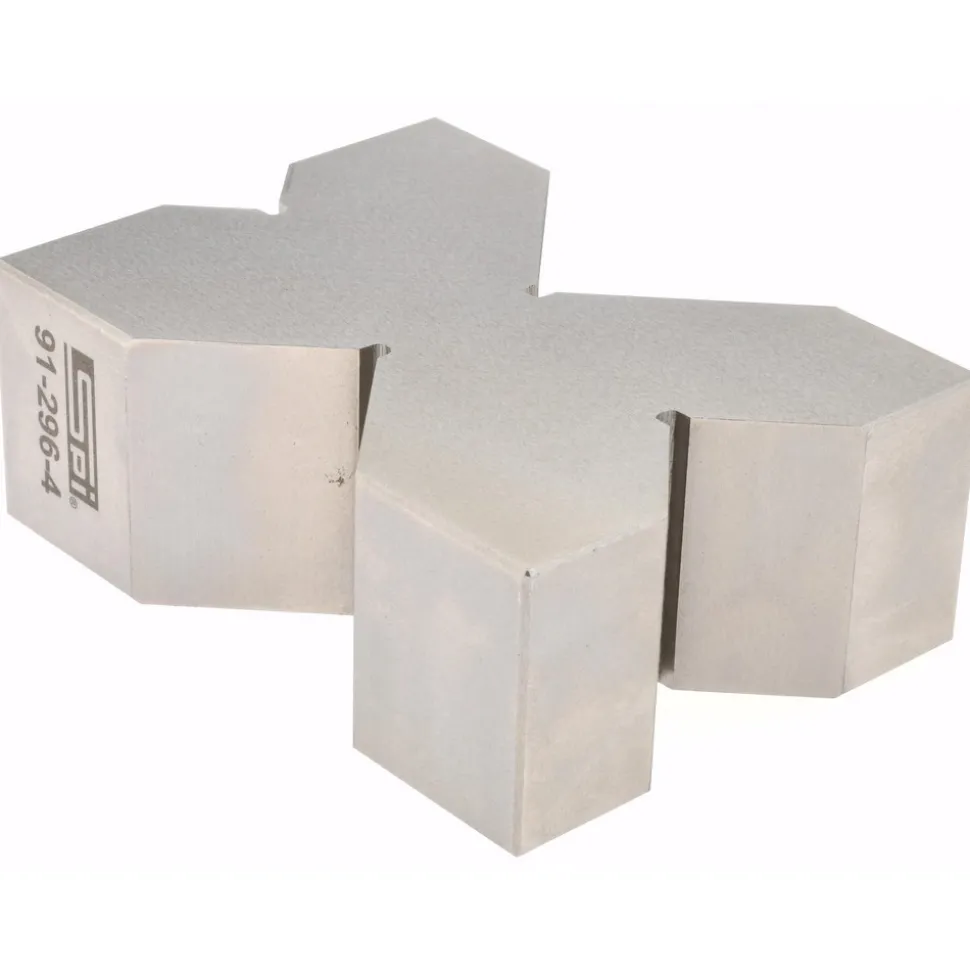

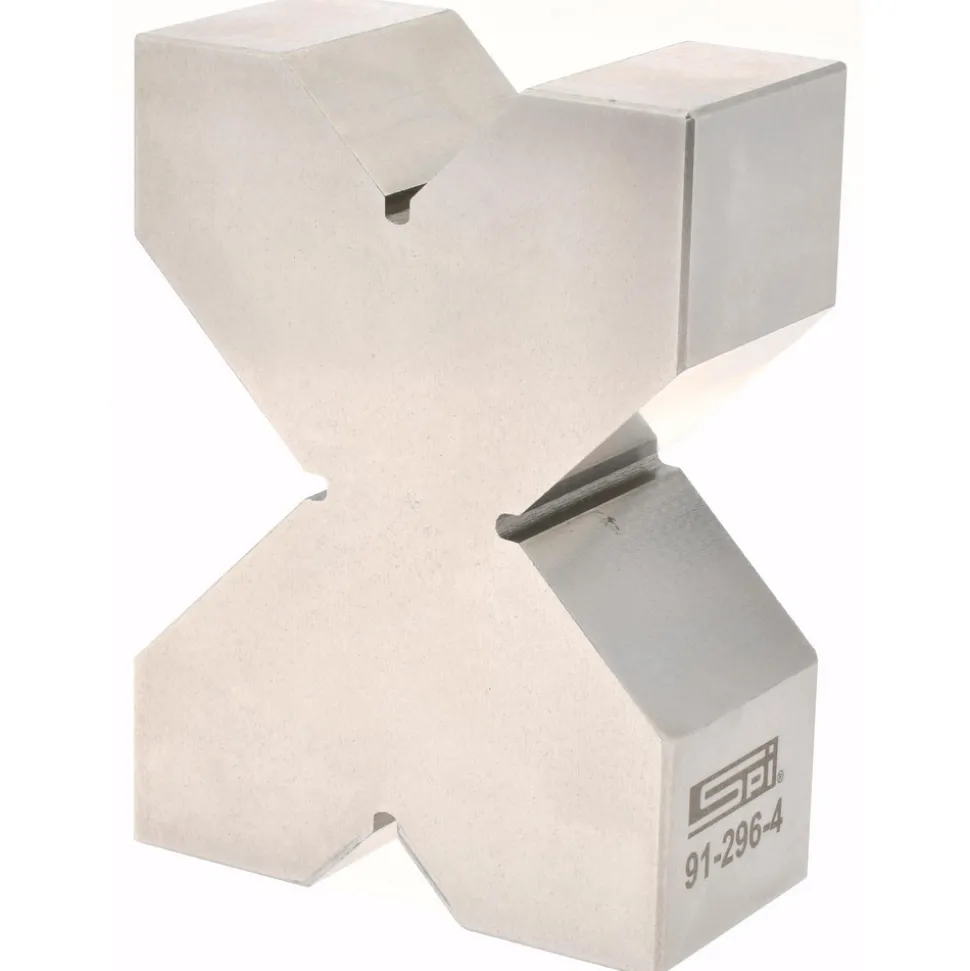

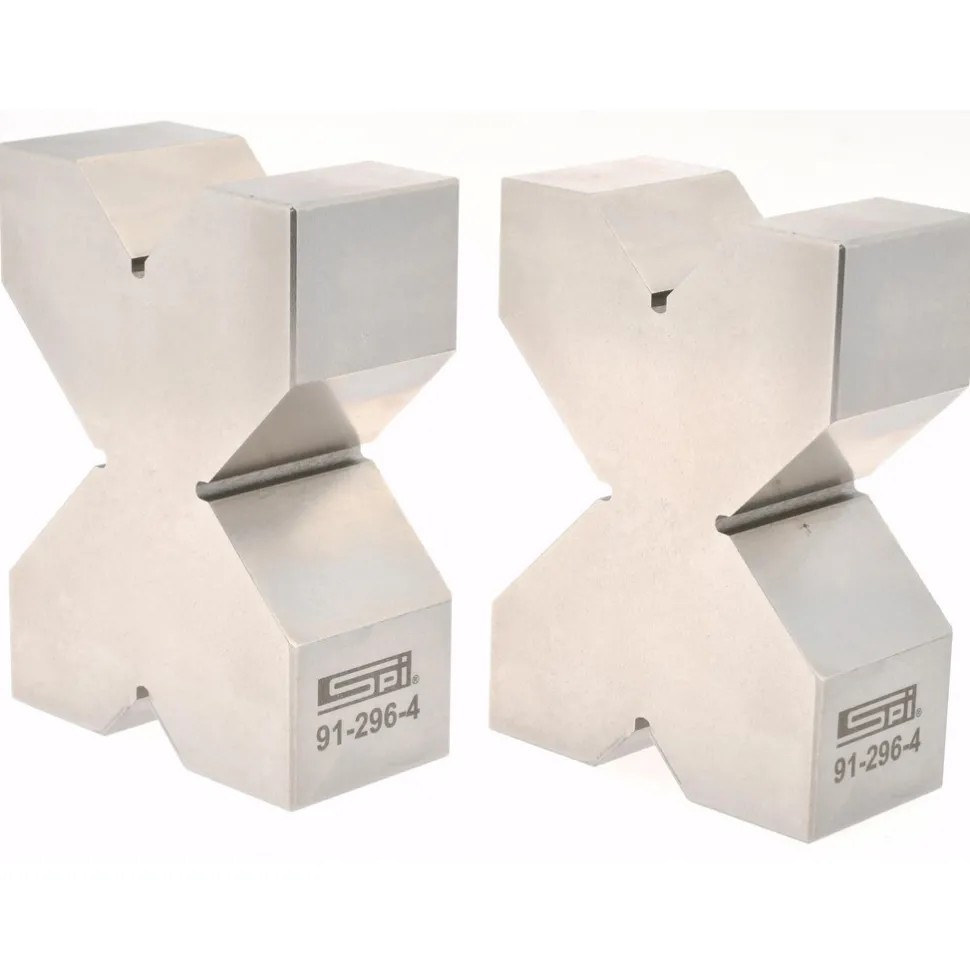

V-Block: 2″ Max Capacity, 90° V Angle

82,99 $

SKU: SKUMRcU1s84Dw Categories: Calibration, Layout & Machine Setup Tools, Measuring & Inspecting, Shop All Products Tag: SPI Brand: SPI

Description
Reviews (0)

Specifications

V Block Type: 4-Way	Overall Length (Inch): 3-3/4
Overall Length (mm): 95.25	Overall Width (mm): 34.93
Overall Width (Inch): 1-3/8	Overall Height (Inch): 2-3/4
Overall Height (mm): 69.85	V Angle: 90
Minimum Capacity of V (Inch): 3/4	Minimum Capacity of V (mm): 19.05
Maximum Capacity of V (Inch): 2	Maximum Capacity of V (mm): 50.80
Material: Cast Iron	V Parallelism (micro m): 30.00
V Parallelism (Decimal Inch): 0.0012	Magnetic: No
Squareness Per 1 Inch (micro m): 30.00	Sold As Pair: Matched Pair
Squareness (Decimal Inch): 0.001200	UNSPSC Code: 41111627
Country of Origin: India
V Block Type: 4-Way
Overall Length (Inch): 3-3/4
Overall Length (mm): 95.25
Overall Width (mm): 34.93
Overall Width (Inch): 1-3/8
Overall Height (Inch): 2-3/4
Overall Height (mm): 69.85
V Angle: 90
Minimum Capacity of V (Inch): 3/4
Minimum Capacity of V (mm): 19.05
Maximum Capacity of V (Inch): 2
Maximum Capacity of V (mm): 50.80
Material: Cast Iron
V Parallelism (micro m): 30.00
V Parallelism (Decimal Inch): 0.0012
Magnetic: No
Squareness Per 1 Inch (micro m): 30.00
Sold As Pair: Matched Pair
Squareness (Decimal Inch): 0.001200
UNSPSC Code: 41111627
Country of Origin: India


MSC#	88637319
Mfr#	91-296-4
Big Book#	1846
